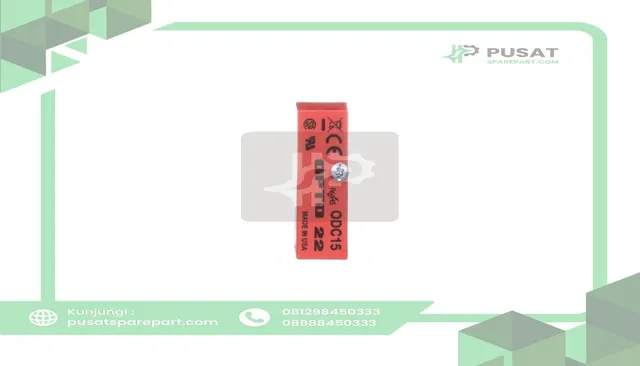

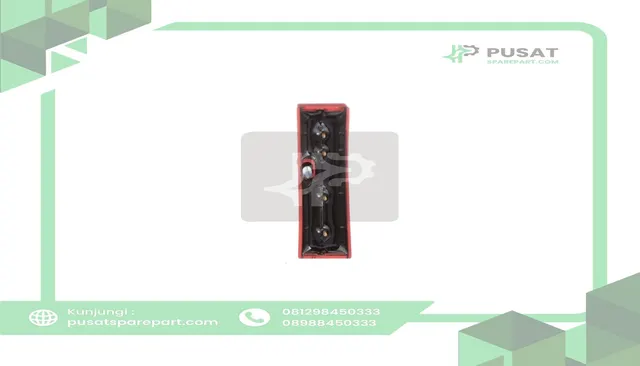

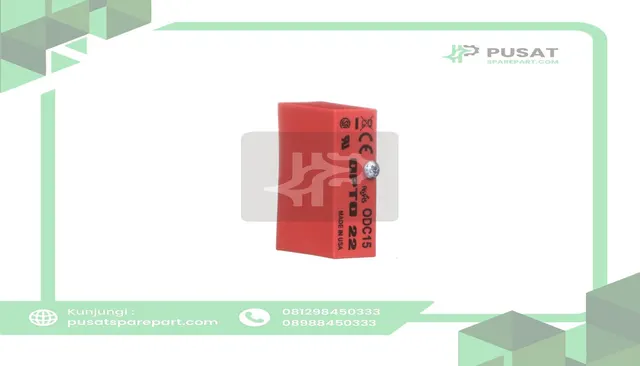

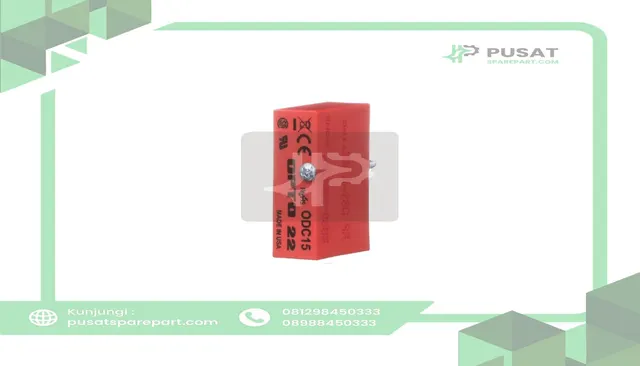

Opto 22 ODC15 Module, 5 to 60 VDC, 3 A @ 45 degC (Current Rating), 15 mA Logic Input Current
(32 ulasan)
| SKU: SKU001634
Rp1.140.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Part Number Pabrikan | ODC15 |
|---|---|
| Produsen | OPTO 22 |
| Tipe Pemasangan | 5 Pin I/O Mounting Board |
| Module Type | DC Output |
| Suhu Operasi Minimum | -30 °C |
| Suhu Operasi Maksimum | 70 °C |
| Jumlah Output | 1 |
| Satuan | EA |
| Jumlah Port I/O | 1 |
| Jumlah Kanal | 1 |
| Input Resistance | 1 kOhms |
| Seri | ODC Series |
| Arus Input | 15 mA |
| Leakage Current | 1 mA @ Voltage (Max.) uA |
| Isolation Voltage | 4000 V |
| Digunakan Dengan | SNAP PAC System |
| Fitur Khusus | Optical Isolation |
| Tegangan Suplai | 15 VDC |
| Turn On Time | 100 μs |
| Turn Off Time | 50 μs |
| Rentang Suhu Operasi | -30 to +70 C |
| Range Output | 5 to 60 VDC |
| Tipe Output | Digital |
| Operating Voltage | 5 to 60 V |
| Suhu Operasi | -30 to 70 °C |
| Tipe Utama | Output |
| Output | 5 to 60 VDC |
| Aplikasi | Data Acquisition, DC Indicators, DC Lamps, DC Motor Starters, DC Relays, DC Solenoids, Energy Management, Industrial Automation, Monitoring, PLC Logic |
| Standar | CSA Certified, CE Marked, RoHs Compliant |
| Contact Form | DC Relays + Solid State Relays |
| Connection to Host | Backplane |
-30 to +70°C Operating Temperature, Standard DC Output I/O Modules
• DC relays ?DC solenoids ?DC motor starters ?DC lamps or indicators ?PLC logicDC output modules are used for controlling or switching DC loads. Each mod
