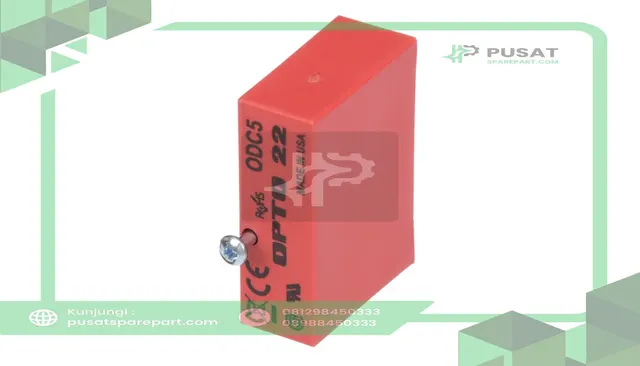

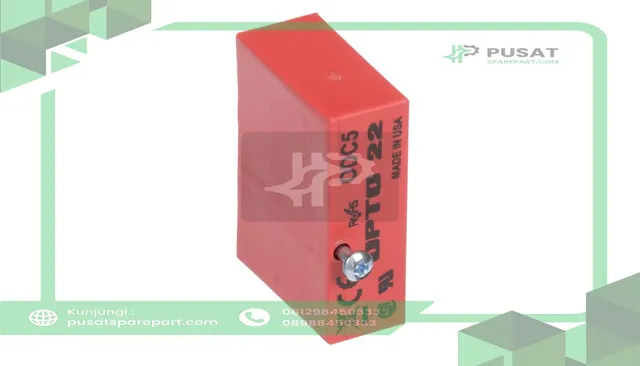

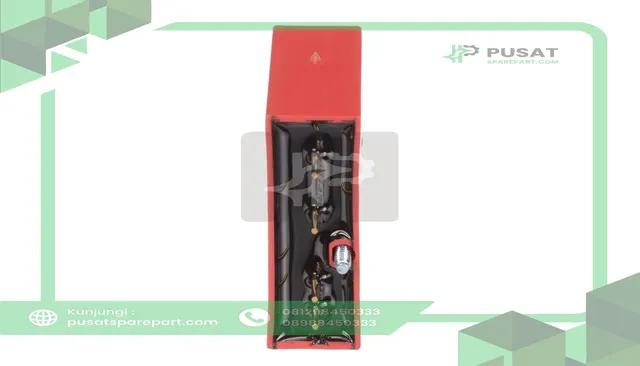

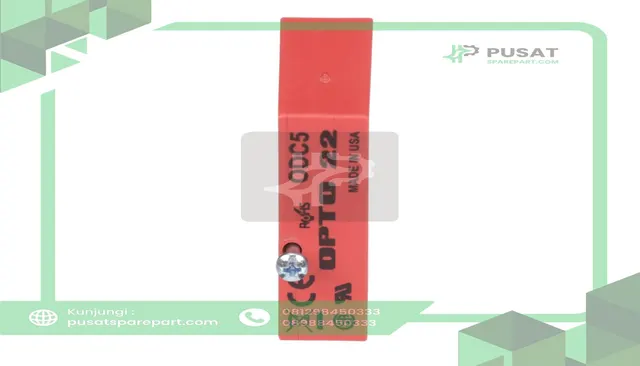

Opto 22 ODC5 Module, 5 to 60 VDC, 3 A @ 45 degC (Current Rating), 12 mA Logic Input Current
(33 ulasan)
| SKU: SKU001635
Rp926.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Manufacturer Part Number | ODC5 |
|---|---|
| Manufacturer | OPTO 22 |
| Mounting Type | 5 Pin I/O Mounting Board |
| Module Type | DC Output |
| Minimum Operating Temperature | -30 °C |
| Maximum Operating Temperature | 70 °C |
| Number of Outputs | 1 |
| Number of IO Ports | 1 |
| Number of Channels | 1 |
| Input Resistance | 220 Ohms |
| Series | ODC Series |
| Input Current | 3 A A |
| Leakage Current | 1 mA @ Voltage (Max.) uA |
| Isolation Voltage | 4000 V |
| For Use With | SNAP PAC System |
| Special Features | Optical Isolation |
| Supply Voltage | 5 VDC |
| Turn On Time | 100 μs |
| Turn Off Time | 50 μs |
| Temperature Operating Range | -30 to +70 C |
| Range Output | 5 to 60 VDC |
| Output Type | Digital |
| Operating Voltage | 5 to 60 V |
| Operating Temperature | -30 to 70 °F |
| Primary Type | Data Acquisition |
| Output | 5 to 60 VDC |
| Application | Data Acquisition, DC Indicators, DC Lamps, DC Motor Starters, DC Relays, DC Solenoids, Energy Management, Industrial Automation, Monitoring, PLC Logic |
| Type | Output |
| Standards | CSA Certified, CE Marked, RoHs Compliant |
| Contact Form | DC Relays + Solid State Relays |
| Connection to Host | Backplane |
-30 to +70°C Operating Temperature, Standard DC Output I/O Modules
• DC relays ?DC solenoids ?DC motor starters ?DC lamps or indicators ?PLC logicDC output modules are used for controlling or switching DC loads. Each mod
