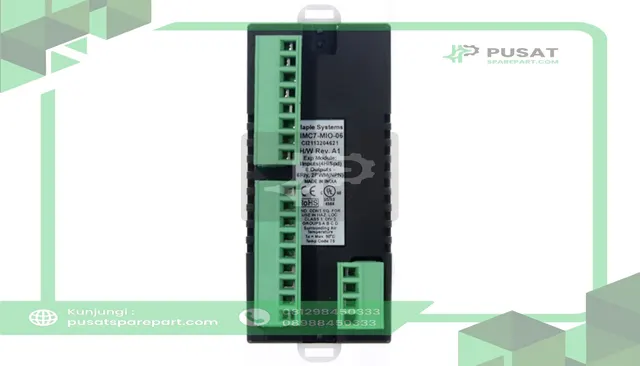

Maple Systems HMC7-MIO-06 MODULE,HMC,8IN(4HS)/8OUT,6 RELAY,2 PWM(NPN)

I/O Expansion Module | 8 Digital Inputs | 8 Digital Outputs (6 Relay, 2 PWM NPN)The HMC7-MIO-06 is one of several I/O expansion modules that attach to the back of Maple Systems Graphic HMCs. This module possesses 8 digital inputs, 8 digital outputs (6 relay and 2 PWM NPN type). Easily tighten wiring to the terminals with a 3/32% flat blade screw driver.
Features:
Power: 3.9VDC from HMC7000 base, 24VDC 850mA maximum (user supplied)Isolation: I/O optically isolated from internal circuitDigital Inputs: 8 bidirectional inputs (4 high-speed – 25KHz)Rated Input Current: Up to 5mA (per contact)Input Impedance: 4.7KΩMinimum ON Voltage: 15VDCMaximum OFF Voltage: 5VDCTurn ON/OFF Time: 10msecSpecial Input Functions: High-Speed Channels: 4 inputs, X0, X5, X2 and X7Max. Input Frequency: 25KHzMax. Input Count: 4,294,967,295 (32-bit)Digital Outputs: 6 relay, two sinking (NPN-type) outputsOutput Capacity: 500mA max per outputRated Load: 500mA @ 24VDC (300mA PWM)Total Output Capacity: 4A @ 24VDCPWM Outputs: 2 channels (Y2 and Y4)Connection Method: Removable terminals (3.81mm pitch)
