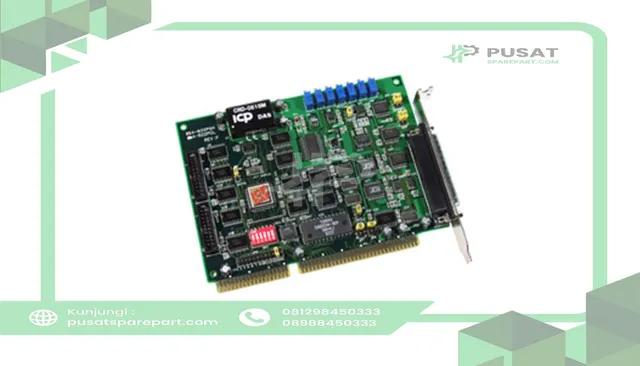

ICP A-822PGL 12 Bit Multifunction Board w/125KS/s Sampling Rate, 16 Channel Analog Input

Name: ICP A-822PGL 12 Bit Multifunction Board w/125KS/s Sampling Rate, 16 Channel Analog Input
Brand: ICP
SKU: SKU042381
Price: 21900000 IDR
Availability: BackOrder

(39 ulasan) | SKU: SKU042381

Rp21.900.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Accuracy	0.01% of FSR +/- 1 LSB @ 25 °C, +/- 10 V mA
Brand	ICP
Bus Type	ISA
Gain	0.5 dB
Humidity	5 to 85 %RH
Input Impedance	10 MO/6 pf Killoohms
Manufacturer Part Number	A-822PGL
Maximum Operating Temperature	60 °C
Number of Inputs	16
Number of Outputs	18
Output Type	AO, DO
Resolution	16 bit
Sampling Rate	125 kS/s. max. ksps
Slew Rate	0.6 V/μs V/μs
Storage Temperature	-20 ~ 70 °C °C
Temperature Operating Range	0 to 60 C °C

A-822PGL is a 12-bit multifunction analog and digital I/O board for PC/AT compatible computers. A-822PGL offers 16 single-ended or 8 differential analog inputs and two channels of analog output with 12-bit resolution. A-822PGL has 16 digital input, 16 digital output, and one timer/counter channel. A-822PGH provides gains of 0.5, 1, 5, 10, 50, 100, 500, and 1000 while A-822PGL provides gains of 0.5, 1, 2, 4, and 8. Maximum sampling rate is 125 K samples/s. DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
