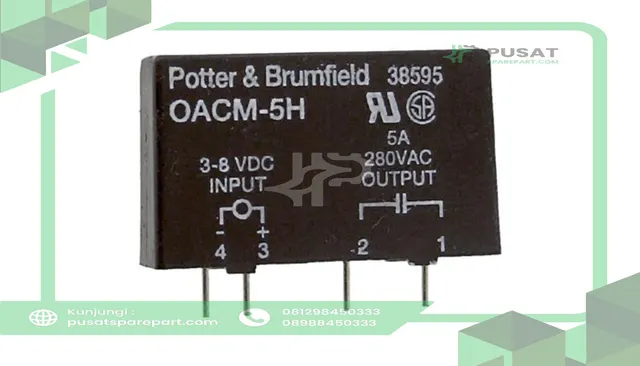

TE Connectivity 4-1393028-0 Module, Control, Output, Digital, Circuit Board, 20mA, 5VDC, PCB, OACM Series
(16 ulasan)
| SKU: SKU004195
Rp955.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Kode UNSPSC | 39120000 |
|---|---|
| Part Number Alternatif | 4-1393028-0 |
| Merk | TE Connectivity |
| Koneksi ke Host | Circuit Board |
| Dimensi | 1.70 in L X 0.20 in D |
| Digunakan Dengan | 2IO Series Mounting Board |
| Arus Input | 20 mA A |
| Resistansi Input | 220 Ohms |
| Tipe Input | Digital |
| Resistansi Isolasi | 100 MOhms |
| Tegangan Isolasi | 4000 VAC |
| Arus Bocor | 1 mA (RMS)(Max.) @ 120 VAC |
| Part Number Pabrikan | 4-1393028-0 |
| Suhu Operasi Maksimum | 80 °C |
| Suhu Operasi Minimum | -30 °C |
| Tipe Modul | Control |
| Tipe Pemasangan | PCB Mount |
| Jumlah Kanal | 1 |
| Jumlah Port I/O | 1 |
| Suhu Operasi | -30 to 80 °C |
| Tegangan Operasi | 3 V |
| Output | 24 to 280 VAC |
| Tipe Output | Analogue |
| Tipe Utama | Module |
| Rentang Output | 24 to 280 VAC |
| Seri | OACM Series |
| Fitur Khusus | Optical Isolation |
| Standar | Ul Recognized, CSA Certified |
| Tegangan Suplai | 8 VDC V |
| Rentang Suhu Operasi | -30 to +80 C |
| Waktu Matikan | 8.3 ms (Max.) |
| Waktu Nyalakan | 8.3 ms |
| Tipe | Output |
| Satuan | EA |
IACM/OACM IDCM/ODCM Slim Line Input/Output Modules: Slim line .4" (10.16mm) thick package. Foot print same as .6" (15.24mm) thick package. 4,000V rms optical isolation. Color coded by function. High immunity to false operation. Series compatible. Output modules can be controlled from sinking or sourcing logic. Compatible with 2IOM series mounting boards.
