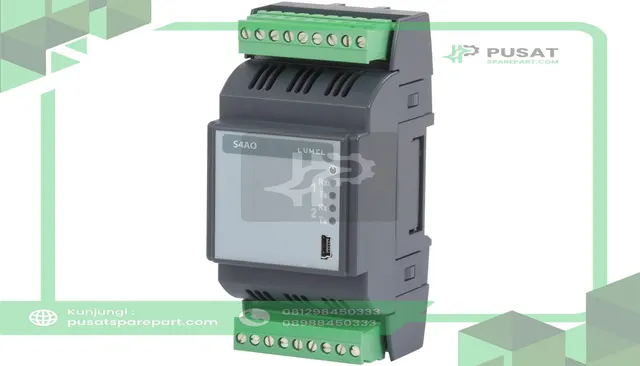

Sifam Tinsley S4AO 2200E0 S4AO I/O Module, Analog, DIN Rail Mt., 4x 0-10V, RS-485, 20-60V DC

SIFAM-TINSLEY Series SM4AO Analog Output Module S4AO 2200E04-channel module analog inputs + 2-TTL Alarm Out2:4 outputs 0-10V2:supply 20-40Vac / 20-60Vdc 00:standard versionE:

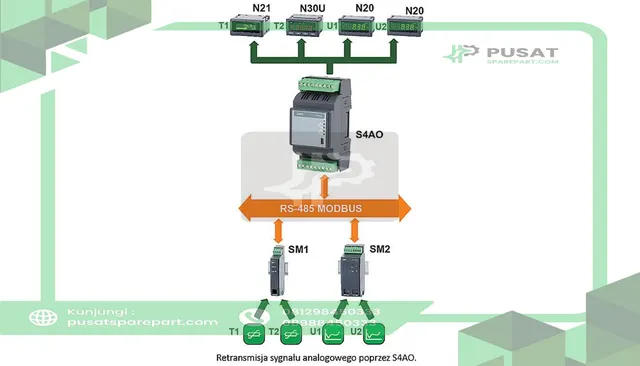

English version0:standard version FEATURES:• Conversion of RS-485 MODBUS data into standard signals in 4 channels (current 0/4...20 mA or voltage 0...10 V).• Possibility of connection via internal RS-485 port in order to increase number of analog outputs in other devices.• Two independent communication ports (possibility to work as Master/Slave).• Master Modbus function dedicated to read out data from other RS-485 devicesand to scale analog value.• Slave Modbus function to set the signal on analog outputs.• Outputs working time counter.• DIN rail mount• Galvanic separation between 2 groups of outputs. • Possibility of configuration through USB without power supply.
