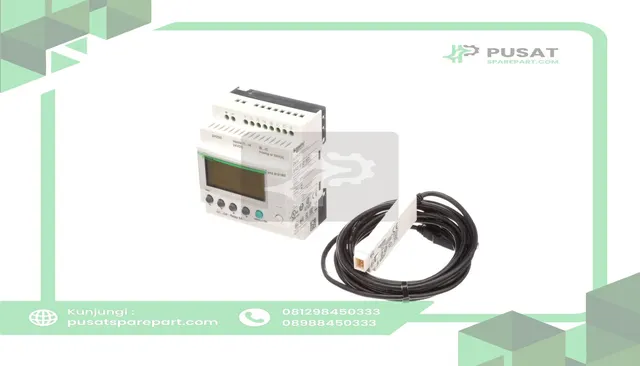

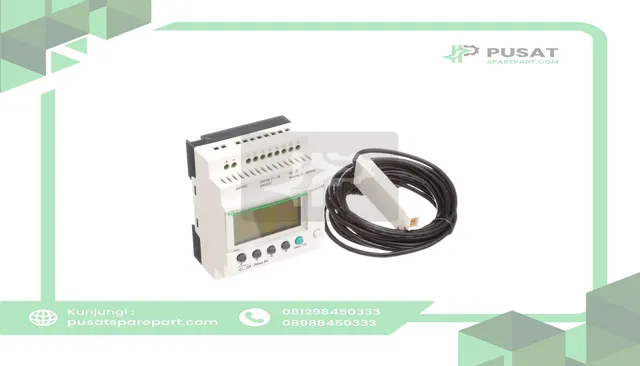

Schneider Electric SR2PACKBD Smart Relay, Programmable, 24VDC, 12-Pin, Zelio Logic SR2 Series
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Deskripsi Produk
| Manufacturer Part Number | SR2PACKBD |
|---|---|
| Manufacturer | Schneider Electric |
| Number of Ports | 12 |
| Mounting Type | DIN Rail Mount |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 55 °C |
| Number of Outputs | 4 |
| Number of IO Ports | 12 |
| Number of Inputs | 8 |
| Series | Zelio SR2 Series |
| Input Type | Analog, Discrete |
| For Use With | Zelio 2 |
| UPC Code | 785901693857 |
| Special Features | Ethernet |
| Scan Rate | 5, 10 mS |
| Supply Voltage | 24 VDc |
| Voltage Rating | 24 V |
| Temperature Operating Range | -20 to +55 C |
| Relay Type | Solid State |
| Output Type | Relay |
| Output Current | 8 A |
| ProductVideoURL | https://www.youtube.com/embed/v-3dbjiOR24 |
| Primary Type | Smart Relay |
| Application | Communication |
| Type | Programmable |
| Function | Programmable |
| Termination | screw |
| Control Voltage | 24 VDC |
| Controller Type | Logic |
| Family Name | Zelio Logic Family |
| Enclosure Rating | IP40 (Front Panel), IP20 (Terminal) |
| Communication Port Type | Ethernet |
Schneider Electric Zelio Logic SR2 / SR3 Series - Smart Relays | For Simple Automation Systems up to 40 I/O's:
Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards..Features:
Modbus or Ethernet communication extension modules6, 10 or 14 discrete I/O and 4 analog I/O extension modulesExtreme compactness: up to 26 I/O within 124.6 x 90 x 59 mmSupply voltage of bases: 12 V DC, 24 V DC, 24 V AC, 100... 240 V ACLarge back-lit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons.
Serial or USB connecting cables for smart relay/PC connectionConnection interface (smart relay/PC) for Bluetooth wireless connectionZelio Soft 2 intuitive programming software: programming using: function block diagram (FBD): 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions contact language (LADDER): 12 pre-programmed functionsApplications:
Industry: control systems for small machines, decentralised control systems on equipment annexed to large and medium-sized machinesBuilding/Service sector: lighting management, access control, control and monitoring, heating and air conditioning control
