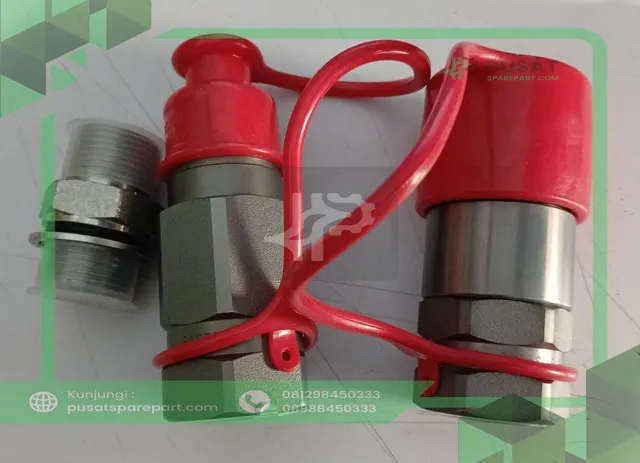

SAE Faster FFH10 34GAS M Hydraulic Coupler 5/8

Spesifikasi teknis
Parameter Detail
Manufacturer FASTER
Series FFH
Model / Part Number FFH10 34GAS M
Product Type Male Flat-Face Hydraulic Quick Coupler
Coupling Size 5/8 inch (DN16)
Thread Connection 3/4 inch BSPP female thread
Thread Standard ISO 1179-1
Coupling Standard ISO 16028
Body Material Steel
Seal Material NBR and polyurethane (PUR)
Maximum Working Pressure 350 bar (5,076 psi)
Flow Rate 125 L/min at 2 bar pressure drop
Operating Temperature -25°C to +100°C
Connection Under Pressure Not permitted
Application Hydraulic oil systems
Country of Origin Italy
Weight Approximately 545.7 g

Spesifikasi berdasarkan katalog produsen FASTER dan distributor produk.

fastercouplings.com
+1

Fungsi dan aplikasi
- Menghubungkan saluran hidrolik pada mesin industri dan alat berat.
- Memudahkan pemasangan dan pelepasan selang hidrolik saat perawatan.
- Mengurangi kehilangan oli ketika sambungan dilepas.
- Digunakan pada mesin pertanian, konstruksi, kendaraan industri, dan sistem hidrolik bergerak.
