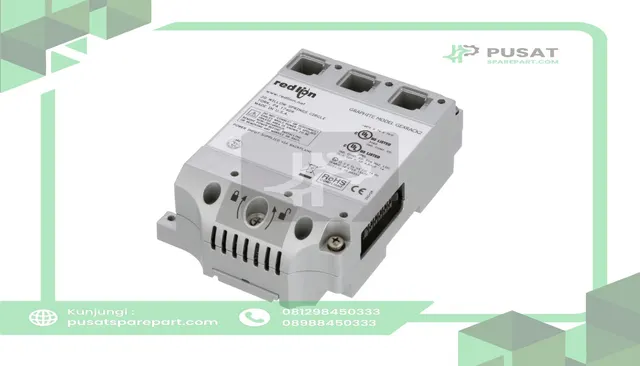

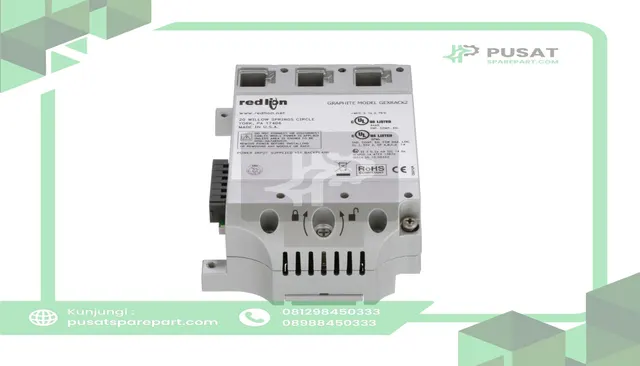

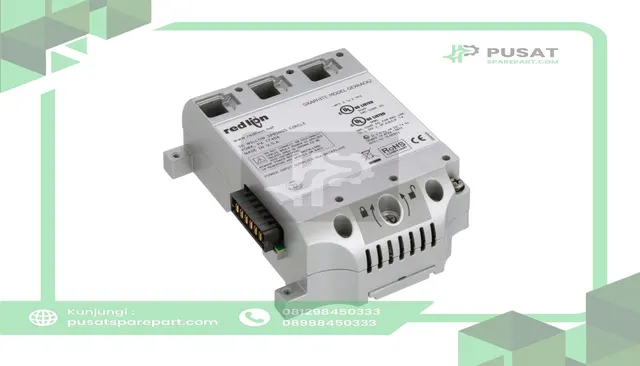

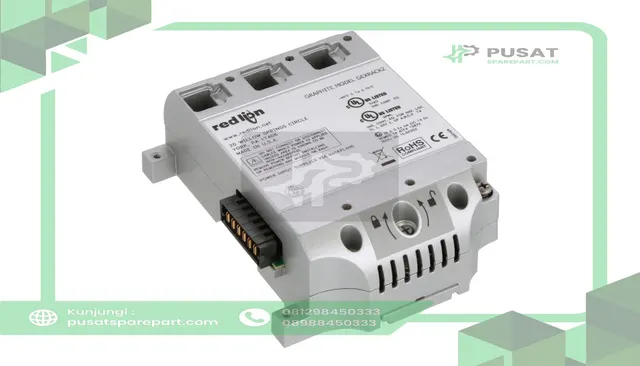

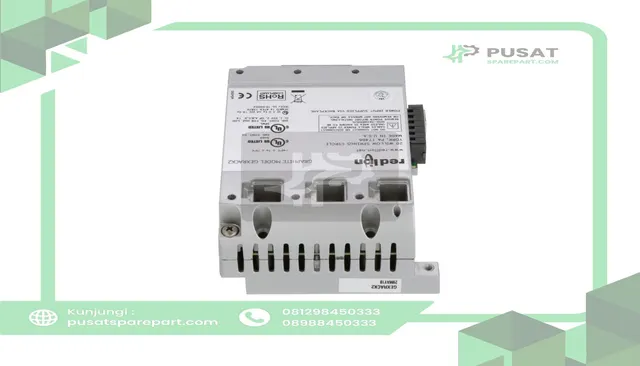

Red Lion Controls GEXRACK2 Graphite Standard Expansion Rack For Modules

Manufacturer Part Number: GEXRACK2
Manufacturer: Red Lion Controls
Mounting Type: DIN Rail/Panel Mount
UNSPSC Code: 39120000
Unit of Measure: EA
Series: Graphite Series
For Use With: Graphite Series
Temperature Operating Range: -40°C to 70°C* °C
Accessory Type: Exapnsion Rack
Material: Cast Aluminum, Installation Category II, Pollution Degree 2 As Defined In IEC 60664-1
Standards: EN 61326-1 Immunity to Industrial LocationsEmission CISPR 11 Class AIEC/EN 61010-1cULus Listed: File #E302106cULus Hazardous: File #E317425Other:
RoHS Compliant
Family Name: Graphite HMI Family
Connector Type: USB Host: Adheres to USB specification 2.0 (high speed/full speed) only using Type B connection

Graphite Standard Expansion Rack for ModulesFeatures:
• Intuitive Drag-and-Drop Crimson 3.0 Graphical Software for Easy Setup
• Crimson Control Functionality Supports Industry-Standard IEC 61131 Programming Languages
• Map Over 300 Drivers to Other Devices without the Need for Special Gateways
• Easy Single-Solution Configuration Eliminates the Need for Third-Party Software
• Protocol Conversion of Over 300 Drivers
• Web Server Provides Remote Visualization, Access, and Control to Reduce Costly Site Visits
• Real-Time Data Logging to an SD Card or via FTP Enhances Troubleshooting and Helps Meet Regulatory Requirements
• High Shock and Vibration Tolerance
• CE, UL/cUL, and UL/cUL Hazardous Approvals
• Wide Operating Temperate Range of -40°C to 70°C
• Choose from a Mix of I/O, PID Control, or Communication to Populate Up to 5 Local Module SlotsCombine Communication and Control Capabilities to Reduce Cost and ComplexityRed Lion's Graphite® Core Controller is a rugged standalone industrial controller that features all-metal construction and works with a variety of I/O modules to combine IEC 61131 control capabilities with networking and data visualization alongside the core functionality of protocol conversion, data logging, and web serving.
The Graphite Crimson® Control Module plugs into Graphite HMIs to form an all-in-one industrial solution. Crimson Control, which is part of Crimson 3.0 software, enables organizations to use IEC 61131 programming languages, such as Ladder Logic, Function Block, Structured Text, and Instruction List, to solve specific application needs by developing logic control much like a Programmable Logic Controller (PLC) or Remote Telemetry Unit (RTU), without the added expense.
