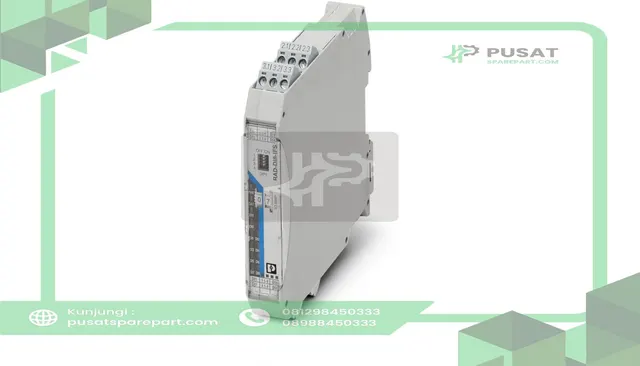

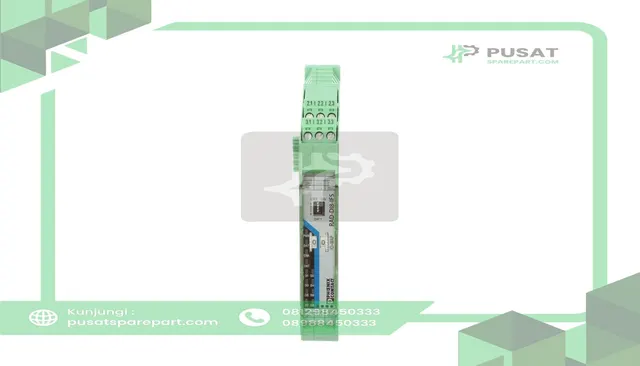

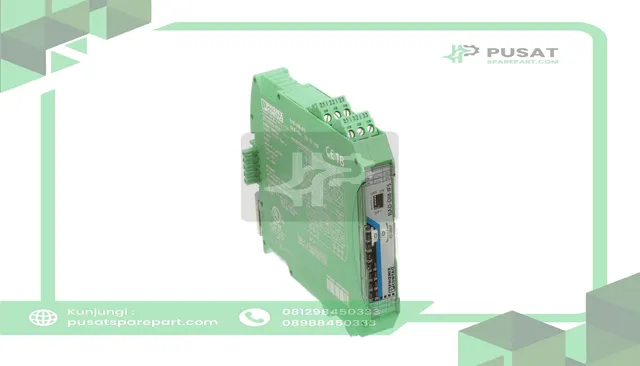

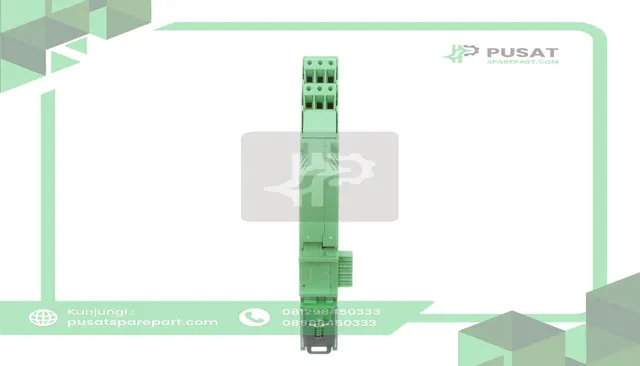

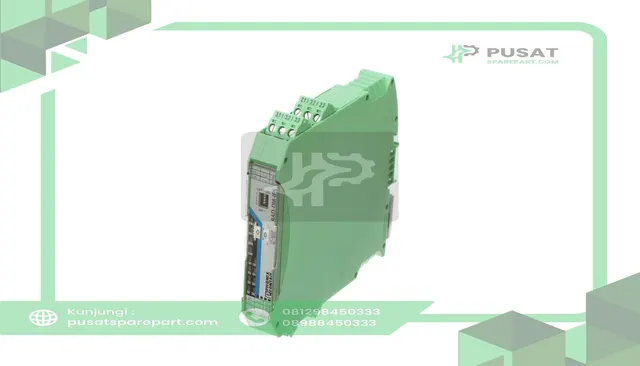

Phoenix Contact 2901539 Digital/Pulse Input IO module, 8 Channel, RAD-DI8-IFS, Radioline Series
(20 ulasan)
| SKU: SKU001902
Rp14.400.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Manufacturer Part Number | 2901539 |
|---|---|
| Manufacturer | PHOENIX CONTACT |
| Mounting Type | DIN Rail/Panel Mount |
| Number of Inputs | 8 |
| Number of Channels | 2 |
| Series | Radioline Series |
| Input Type | Digital |
| IP Rating | IP20 |
| UPC Code | 4046356609159 |
| Supply Voltage | 50 V VDC |
| Output Type | Digital |
| Primary Type | Extension Module |
| Warranty | Limited Lifetime |
| Alternate Mfr Part Number | RAD-DI8-IFS |
| Approvals | ATEX, cUL Listed, cULus listed, EAC, IECEx, UL listed |
| Type | Extension Module |
| Termination | screw |
| Family Name | Radioline Family |
Digital I/O extension module with 8 digital inputs (0 to 30.5 VDC) or 2 pulse inputs (0 to 100 Hz), with screw connection, including DIN rail connector.
Features:
• Extended Temperature Range: -40 to +70 °C
• Easy Module Replacement Even During Operation (Hot Swap)
• 8 Digital Inputs (0 to 30.5 VDC)
• 2 Pulse Inputs (0 to 100 Hz)
• Suitable for ATEX Zone 2
• Easy Starup via Thumbwheel
