Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC

Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC - gambar 1

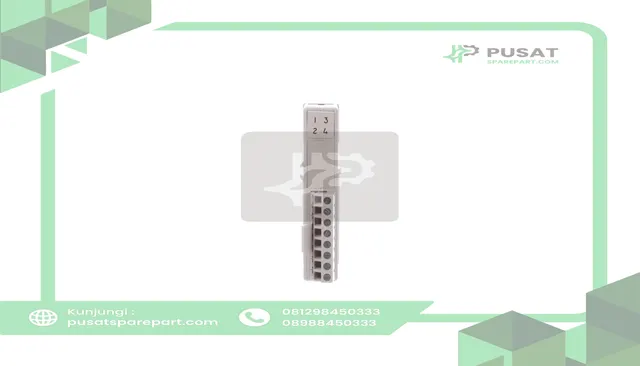

Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC - gambar 2

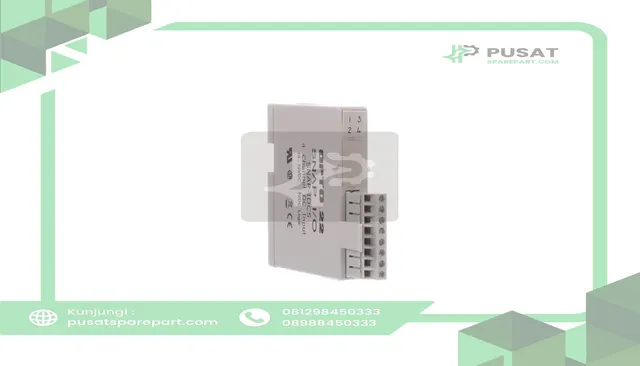

Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC - gambar 3

Opto 22

Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC

Name: Opto 22 SNAP-IDC5 Module, Digital Input, 10 to 32 VAC/VDC, 24 VAC/VDC (Nom.), 5 0.25 VDC
Brand: Opto 22
SKU: SKU001557
Price: 3080000 IDR
Availability: BackOrder

(35 ulasan) | SKU: SKU001557

Rp3.080.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Manufacturer Part Number	SNAP-IDC5
Manufacturer	OPTO 22
Mounting Type	5 Pin I/O Mounting Board
Module Type	Input
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	70 °C
Number of IO Ports	4
Number of Inputs	4
Number of Channels	4
Series	SNAP PAC Series
Input Current	50 mA A
Input Type	Digital
Isolation Voltage	4000 V
For Use With	SNAP PAC System
Special Features	Optical Isolation
Supply Voltage	5 VDC
Voltage Rating	10 to 32 V
Turn On Time	5 ms
Turn Off Time	15 ms
Temperature Operating Range	0 to +70 C
Primary Type	Input
Application	Data Acquisition, Energy Management, Industrial Automation, Monitoring, Testing
Input	10 to 32 VDC
Standards	UL and CE Approved
Connection to Host	Backplane

2.7 V (Min.) @ 0.4 mA Nominal Logic Voltage, 5 ms Turn-On Time, Digital Input Modules
• Four channels per module ?4,000-volt transient isolation ?Convenient pluggable wiring terminals ?Channel-specific LEDs ?Operating temperature: 0° to 70°C ?UL and CE approved ?Accepts up to 14 AWG wire ?Factory mutual approvedThe SNAP-IDC5-SW and SNAP-IDC5-SW-NC modules provide four channels of contact status input. Each module supplies 15 volts of power to an external dry contact switch. The SNAP-IDC5-SW senses switch closure; the SNAP-IDC5-SWNC senses switch opening. Each user-supplied switch is connected with two wires.
