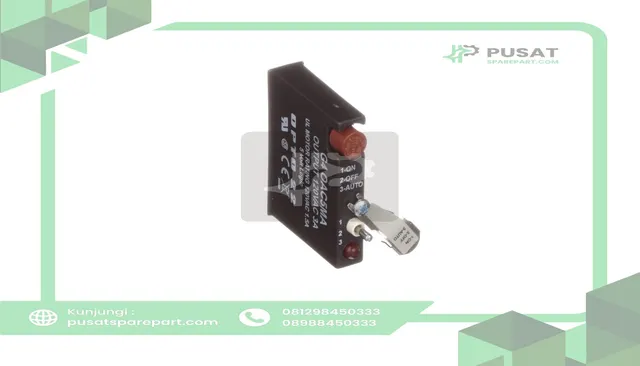

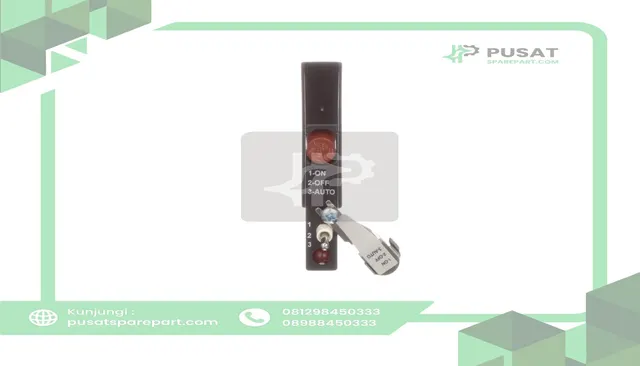

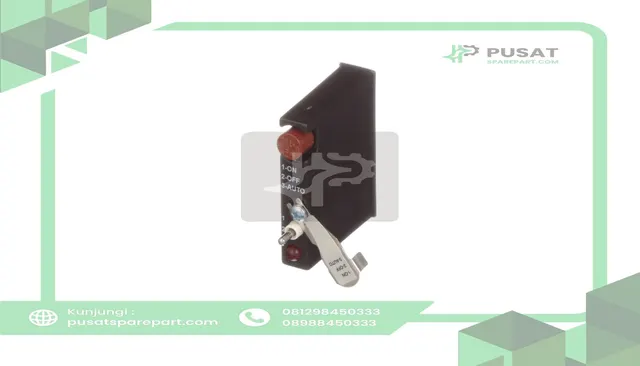

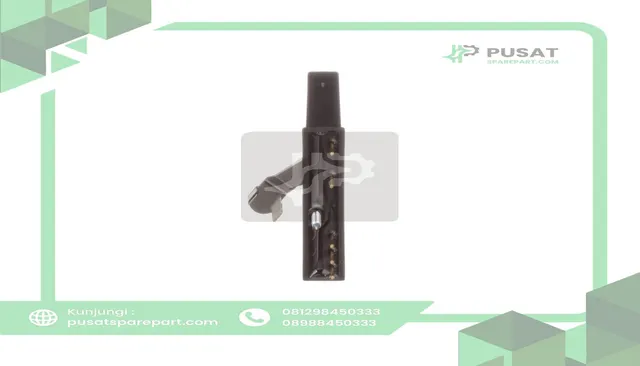

Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch

Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch - gambar 1

Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch - gambar 2

Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch - gambar 3

Opto 22

Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch

Name: Opto 22 G4OAC5MA I/O Module, AC Output, 12-140 VAC, 5 VDC input, w/ Manual/Auto Switch
Brand: Opto 22
SKU: SKU001658
Price: 2110000 IDR
Availability: BackOrder

(16 ulasan) | SKU: SKU001658

Rp2.110.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Manufacturer Part Number	G4OAC5MA
Manufacturer	OPTO 22
Mounting Type	5 Pin I/O Mounting Board
Module Type	Digital
Minimum Operating Temperature	-30 °C
Maximum Operating Temperature	70 °C
Number of Outputs	1
Number of IO Ports	1
Number of Channels	1
Series	G4 Series
Input Current	12 mA A
Isolation Voltage	4000 VAC
Insulation Resistance	100 MOhms
Special Features	Optical Isolation
Supply Voltage	5 VDC
Turn On Time	8.3 ms
Turn Off Time	8.3 @ 60 Hz ms
Temperature Operating Range	-30 to +70 C
Range Output	12 to 140 VAC
Output Type	Digital
Operating Voltage	12 to 140 V
Primary Type	Data Acquisition
Output	12 to 140 VAC
Application	Automation, Data Acquisition, Energy Management, Monitoring, Testing
Type	Output
Standards	UL listed
Connection to Host	Backplane

Opto 22 G4 I/O includes both digital and analog modules. Each G4 module offers compact single-channel packaging. Each digital module includes an LED status indicator and also is available with manual switching capability for field wiring and control logic testing. Digital modules support 5-, 15- or 24-volt logic. G4 digital output modules feature a top-mounted replaceable fuse. G4 analog modules are factory-calibrated, offer 12-bit resolution and require a single 24-volt power supply.
All current loop modules include an isolated loop power supply for added flexibility and reduced instrumentation costs. Input types include voltage, current, thermocouple, RTD, ICTD, frequency and velocity. Outputs include voltage, current and time-proportional output. Factory Mutual (FM) approved versions of many G4 I/O modules are available.
Contact Allied for details on specific models or visit Alliedelec.com for more information.
