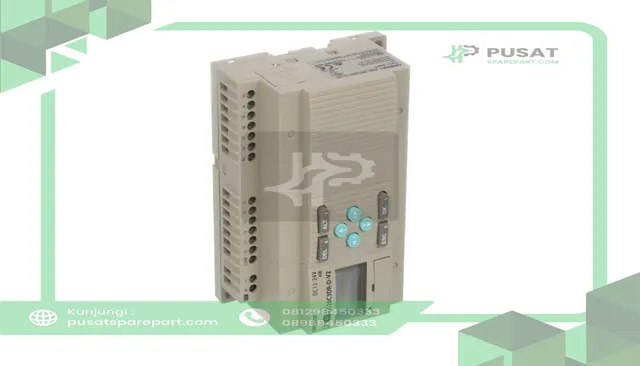

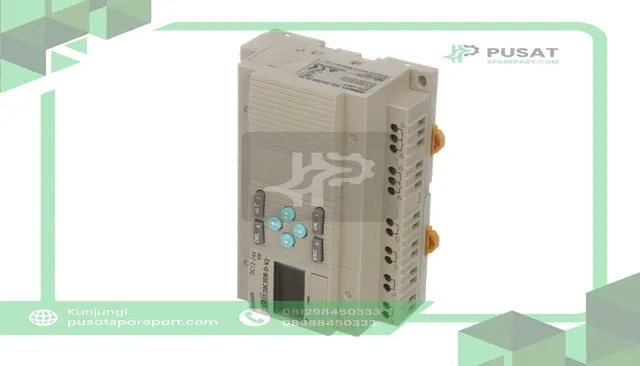

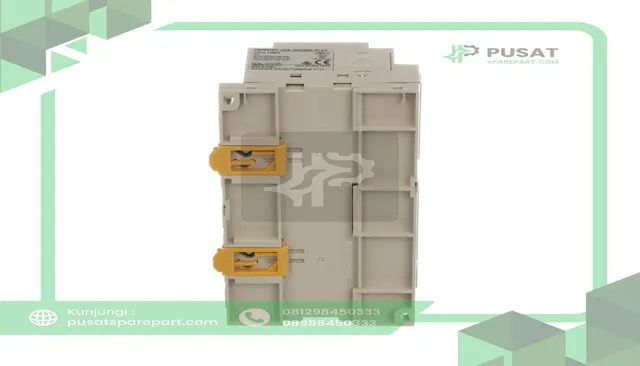

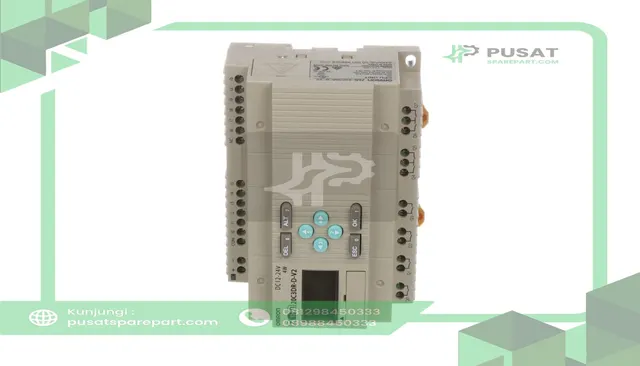

Omron Automation ZEN-20C3DR-D-V2 Controller, CPU, 12 Inputs, 8 Outputs, 12-24VDC, LCD Display, Non-Expandable
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Deskripsi Produk
| Alternate Mfr Part Number | ZEN20C3DRDV2 |
|---|---|
| Brand | Omron Automation |
| Communication | RS485 |
| Dimensions | 3.54 in L X 0.08 in D |
| Display Type | LCD |
| For Use With | ZEN V2 |
| Input Current | 4.5 mA |
| Input Type | Analog |
| IP Rating | IP20 |
| Manufacturer Part Number | ZEN-20C3DR-D-V2 |
| Maximum Operating Temperature | 55 °C |
| Memory | EEPROM |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | DIN Rail Mount |
| Number of Inputs | 12 |
| Number of IO Ports | 20 |
| Number of Outputs | 8 |
| Output Current | 30 A |
| Output Type | Relay |
| Primary Type | Controller |
| Scan Rate | 15/50 (On Response Time, Off Response Time) mS |
| Series | ZEN Series |
| Special Features | Compact Body, Easy Programming, Flexible Expansion Unit, 8-Digit Counter, Twin Timer Operation, Economy Type Display |
| Supply Current | 4.5 mA |
| Supply Voltage | 12-24 VDC |
| Temperature Operating Range | 0 to +55 C |
| Termination | Terminal Block |
| Type | PLC |
| Voltage Rating | 12 to 24 V |
A compact solution for small-scale control applications that blends simple, flexible programming and reliable easy performance. Omron's ZEN nano controller offers the ideal mix of flexibility, functionality and cost for a wide range of applications.
Here's Why:
• Combines the Functionality of Separate Timers, Counters and Relays
• Provides Flexible Programming without Rewiring
• AC or DC Inputs with 8 A Relay Outputs
• Offers Multiple Expansion Options for Future Needs
• Exceptional Value for the Cost of Installing Just Three Relays
• Simple Ladder Logic Programming Using ZEN Support Software or Operation Buttons on Front Panel (LCD Models Only)
• Save Time By Using the Memory Cassette to Transfer Programs Between ZEN UnitsFeatures:
• Compact, CPU and Expansion Units
• 8 Timers Support 4 Types of Operation and 3 Timing Ranges Available
• 4 Holding Timers Hold Data During Power Interruptions
• 8 Counters Can Be Switched Between Incremental and Decremental
• 8 Weekly Timers for Day/Time Control
• 8 Calendar Timers for Seasonal Control
• 10 I/O and 20 I/O CPUs Expandable to 34 and 44 I/O
• 16 Holding Bits Retain ON/OFF Status in Case of Power Failure; No Need for Extra Circuitry
• ZEN Battery Provides Controller CPU with 10 Years of Memory Protection
• Accurate Analog Inputs ±1.5% FS
• Flexible Mounting — Either Horizontal or Vertical
• Models with LCD Display Also Feature Real-Time Clock/Calendar and Programming Buttons
• Advanced High-Value Counting with 8-Digit Counter and 8-Digit Comparators, in Addition to 16 Standard Counters
• One 150-Hz High-Speed Counter Available On Models with DC Power Supply
• Twin-Timer Operation Allows You to Set ON and OFF Times Separately, Greatly Simplifying Intermittent Operation
• Password Function Ensures Security
• Display User-Set Messages or Analog-Converted Values
• Economy CPUs Available for Limited I/O ApplicationsSystem Advantages:
• Delivers the Flexibility and Functionality of Separate Timers, Counters and Relays for Control Applications with Up to 44 I/O
• Save Time By Using the Memory Cassette to Transfer Programs Between Zen Units and Standardize Updates to End Users
• Reduce Wiring and Engineering Time Using Simple Ladder Logic Programming with the Push of a Button or Click of the Mouse
• Easily Add Up to 3 Ultra-Slim 35 mm, 8 I/O Expansion Units When More Points of Control Are RequiredZen Support Software:
• Easily Write Ladder Programs, Monitor Programs Online, Set Parameters, Print and Save Files In the Windows® Environment
• Offers Simulation Capability to Simplify Program Debugging; Allows Programs to Be Simulated on a Personal Computer without Connecting to Zen
