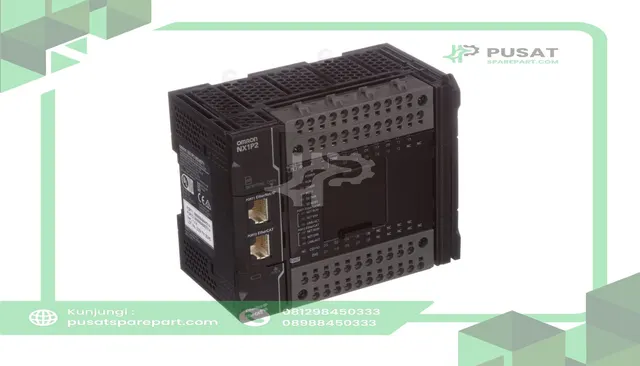

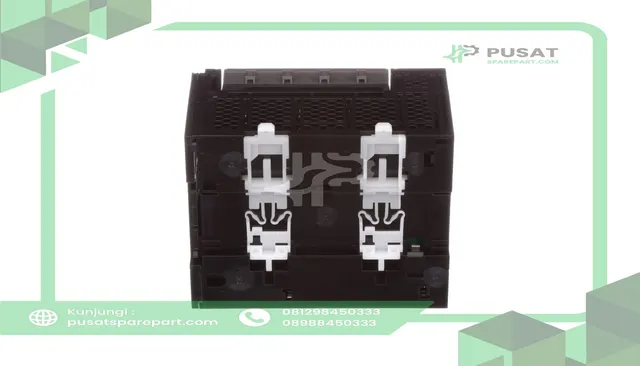

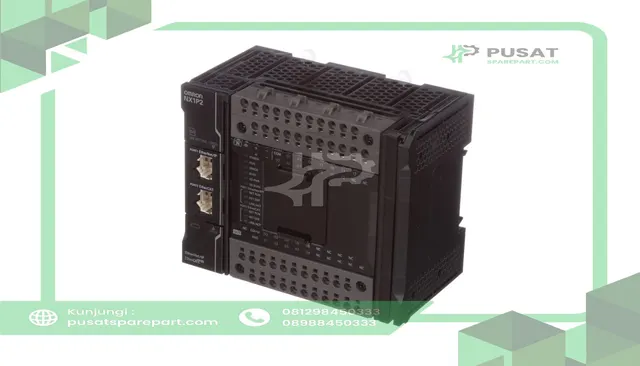

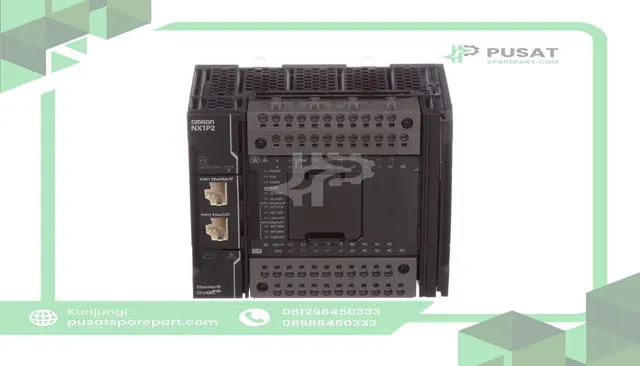

Omron Automation NX1P2-9024-DT1 CPU, 24 Built-in I/O points, 4 Max Axes, PNP, NX-12P Series
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Deskripsi Produk
| Manufacturer Part Number | NX1P2-9024-DT1 |
|---|---|
| Manufacturer | Omron Automation |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 55 °C |
| Number of Inputs | 24 |
| Number of Axis | 4 |
| Series | NX1P Series |
| For Use With | NX1P Series |
| Special Features | Additional NX power supply modules, Digital and Analog I/O, Heater Burnout Detector, IO-Link Master, Load Cell Input, Position Interfaces: Encoder and SSI Input, Pulse Output, Serial Communications, Temperature Input |
| Output Type | Transistor PNP |
| Protocol Type | EtherCAT, Ethernet IP |
| ProductVideoURL | https://www.youtube.com/embed/FNB5KHMLJJI |
| Alternate Mfr Part Number | NX1P29024DT1 |
| Output | PNP |
| Standards | UC1, CE, RCM, KC |
| Family Name | NX/IO Family |
| Communication Port Type | RJ45 |
Omron NX1P Series | NX Family of Series - Machine Automation Controller:
The NX1P provides advanced motion control previously done by a dedicated controller or special unit. Continuous operation by use of electronic cams improves productivity and meets diverse production needs. The NX1P requires no battery to retain user program, set values, and variables during power interruption in the built-in memory. The 1S AC Servo System comes with a battery-free absolute encoder. They reduce machine maintenance. Series Features:
• Integrated sequence control and motion control
• Up to eight axes of control via EtherCAT
• Up to four synchronized axes - electronic gear/cam and linear/circular interpolation
• Standard-feature EtherCAT control network support
• Safety subsystem on EtherCAT
• Standard-feature EtherNet/IP port
• Built-in I/O
• Up to eight NX I/O Units connectable
• Up to sixteen remote NX I/O Units connectable via EtherCAT coupler
• Up to two option boards connectable to add serial communications or analog I/O functionality
• Battery-free operation
• Fully conforms with IEC 61131-3 standard programming
