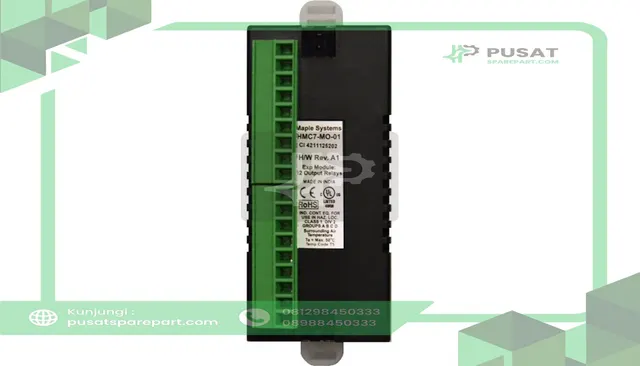

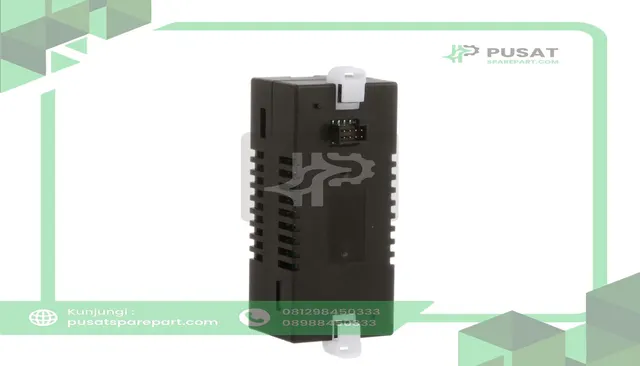

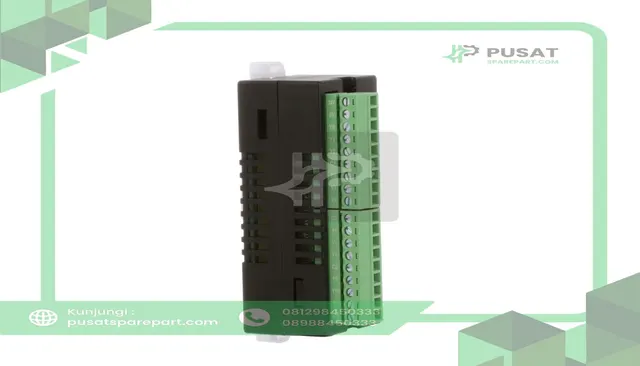

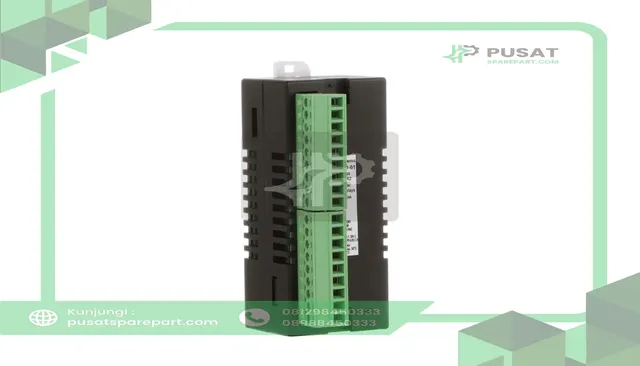

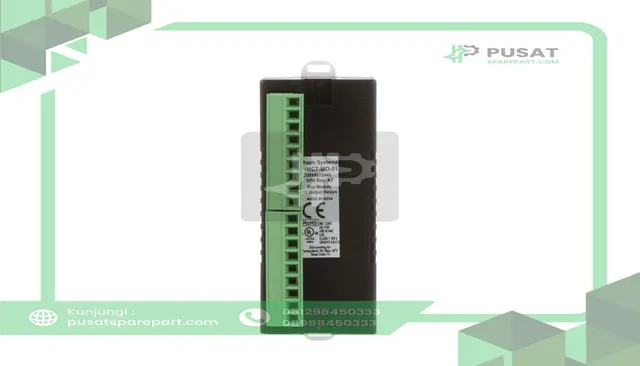

Maple Systems HMC7-MO-01 MODULE, HMC, 12OUT, RELAY

I/O Expansion Module | 12 Digital Relay OutputsThe HMC7-MO-01 is one of several I/O expansion modules that attach to the back of Maple Systems Graphic HMCs. This module possesses 12 digital relay outputs. Easily tighten wiring to the terminals with a 3/32" flat blade screw driver.
Features:
Power: 3.9VDC from HMC7000 baseIsolation: Optically isolated from internal circuitDigital Ouputs: 12 relay type outputsTurn ON Time: 10msecTurn OFF Time: 5msecOutput Current: 2A@230VAC per contactResistive Load - 115Ω max2A@30VDC per contactResistive Load - 15Ω maxInput Power (Coil) Supply: Voltage: 24VDC (required even when using AC loads)Current: 150mA maximumConnection Method: Removable terminals (3.81mm pitch)
