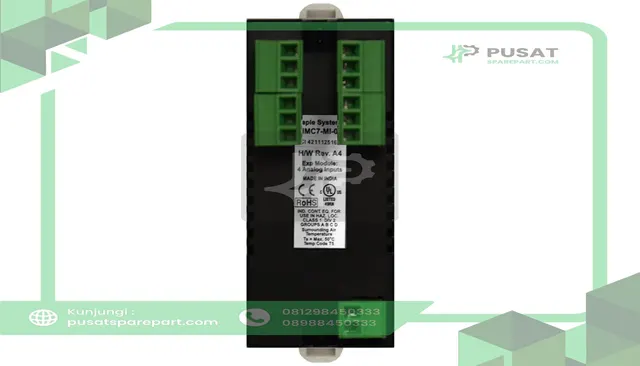

Maple Systems HMC7-MI-02 MODULE,HMC,4IN,ANALOG

I/O Expansion Module | 4 Analog InputsThe HMC7-MI-02 is one of several I/O expansion modules that attach to the back of Maple Systems Graphic HMCs This module possesses 4 analog inputs that support both voltage and current modes. Easily tighten wiring to the terminals with a 3/32" flat blade screw driver.
Power: 3.9VDC from HMC7000 baseAnalog Inputs: 4 inputs (0-10V, -10 to +10V, 0-20mA, or 4-20mA)Resolution: 12 bitVoltage Mode: Input Range: 0 to 10V, and -10 to 10VValue of LSB: For 0-10V: 2.44mV, for +10V: 4.88mVInput Impedance: 200KΩAccuracy: At 25°C – 0.1% of full scale. Overall accuracy for temp. range -25 °C to 55 °C – 0.3% of full scaleCurrent Mode: Input Range: 4mA-20mA, 0mA-20mAValue of LSB: 3.906μAInput Impedance: 120ΩAccuracy: At 25°C – 0.2% of full scale. Overall accuracy for temp. range: -25 °C to 55 °C – 0.8% of full scaleInput Voltage: 24VDC
