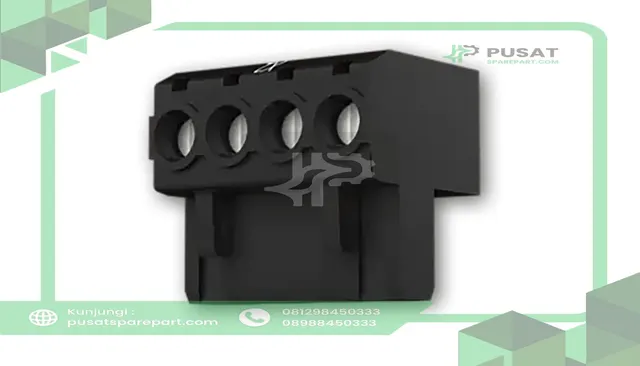

Kunbus PR200029 Plug type X2 for all Revolution Pi modules X2 sockets

The RevPi RO module, an I/O expansion module, enables intuitive control of motors, valves, lighting systems and other devices by simply switching electrical circuits on and off. Equipped with four potential-free normally open (NO) relays and flexible switching capacities, it can be used in a variety of environments.
With five integrated LEDs for module monitoring, including operating and relay status, it provides easy user control. The integrated wear level monitoring enables continuous monitoring of relay life based on switching cycles performed.
It is connected via the PiBridge interface (the required PiPridge Plug, item no.: PR100204, is already included) and configured using the PiCtory software. The module is compatible with the RevPi Connect and RevPi Core base modules for easy integration into existing systems.- Product type: I/O module- DIN rail housing (for DIN rail version EN 50022) - Power supply: 24 V DC Equipped with four potential-free normally open (NO) relays, each with a maximum switching capacity of 5 A at 250 V AC or 30 V DC- 5 status LEDs (2-coloured) à one indicates the operating status, the other four the relay statuses- 1- x 4-pole screw-type terminal for power supply- 4 x 2-pole socket connectors with spring clamp contacts (0.08 mm² ... 1.5 mm²), pitch 3.5 mm- Integrated wear level monitoring
