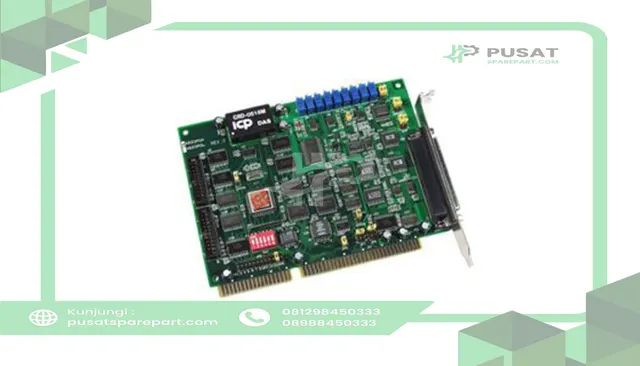

ICP

ICP A-823PGL/S A-823PGL + Daughter Board DB-8225

Name: ICP A-823PGL/S A-823PGL + Daughter Board DB-8225
Brand: ICP
SKU: SKU043555
Price: 28100000 IDR
Availability: BackOrder

(13 ulasan) | SKU: SKU043555

Rp28.100.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Accuracy	0.01% of FSR +/- 1 LSB @ 25 °C, +/- 10 V mA
Brand	ICP
Bus Type	ISA
For Use With	PCI card
Gain	0.5 dB
Humidity	5 to 85 %RH
Input Impedance	10 MO/6 pf Killoohms
Manufacturer Part Number	A-823PGL/S
Maximum Operating Temperature	60 °C
Number of Inputs	16
Number of Outputs	2
Resolution	16 bit
Sampling Rate	125 kS/s. max. ksps
Series	ISA Series
Slew Rate	0.6 V/μs V/μs
Storage Temperature	-20 ~ 70 °C °C

A-823PGL + Daughter Board DB-8225. The A-823PGL is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-823PGL offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bits resolution. In addition, The A-823PGL has 16 digital input, 16 digital output , and one timer/counter channel. The A-823PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 k Sample/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
