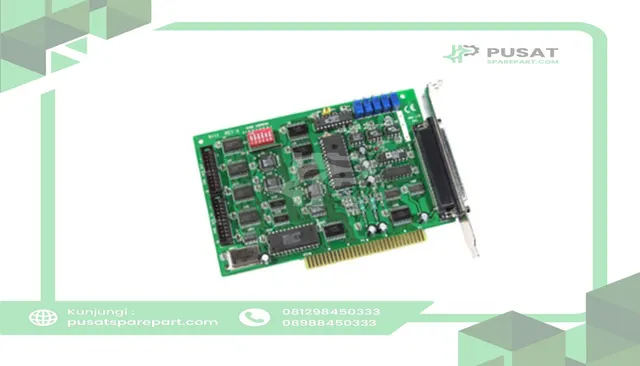

ICP A-8111 12 Bit Multifunction Board w/30KS/s Sampling Rate, 8 Channel Analog Input

Name: ICP A-8111 12 Bit Multifunction Board w/30KS/s Sampling Rate, 8 Channel Analog Input
Brand: ICP
SKU: SKU041489
Price: 11600000 IDR
Availability: BackOrder

(25 ulasan) | SKU: SKU041489

Rp11.600.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Accuracy	0.01% of FSR +/- 1 LSB @ 25 °C, +/- 10 V mA
Brand	ICP
Bus Type	ISA
Gain	1 dB
Humidity	5 to 85 %RH
Input Impedance	10 MO/6 pf Killoohms
Manufacturer Part Number	A-8111
Maximum Operating Temperature	60 °C
Number of Inputs	16
Number of Outputs	17
Output Type	AO, DO
Resolution	16 bit
Sampling Rate	35 kS/s. max. ksps
Slew Rate	0.6 V/μs V/μs
Storage Temperature	-20 ~ 70 °C °C
Temperature Operating Range	0 to 60 C °C

A-8111 is a 12-bit multifunction, analog and digital I/O board for PC/AT compatible computers. A-8111 offers 8-channels of analog inputs, plus one channel of analog output with 12-bit resolution. A-8111 has 16 digital inputs and 16 digital outputs. A-8111 provides gains of 1, 2, 4, 8, and 16. It has a maximum sampling rate of 30K samples/s.
