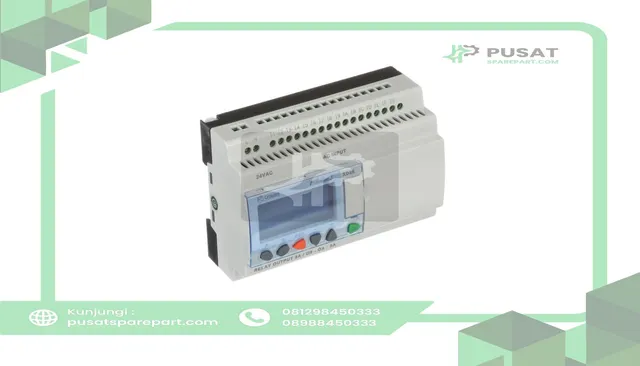

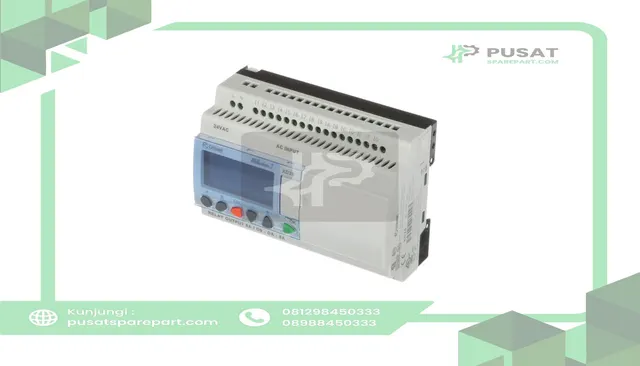

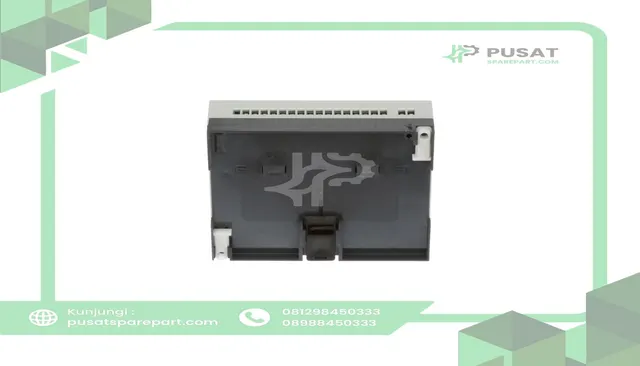

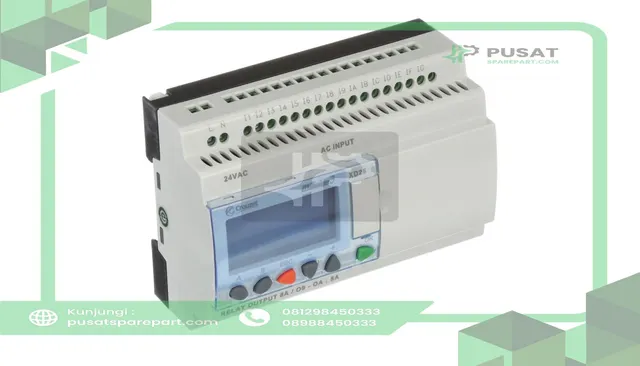

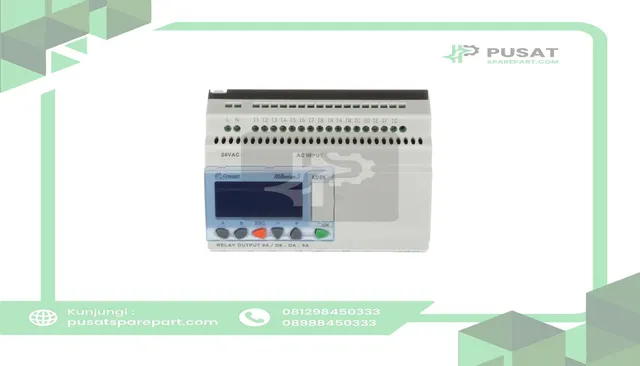

Crouzet 88974164 Controller, PLC, Sup-V 24AC, 16 Digital In, 10 Relay Out, Panel Mnt, IP20, IP40
(23 ulasan)
| SKU: SKU002741
Rp16.700.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Manufacturer Part Number | 88974164 |
|---|---|
| Manufacturer | CROUZET |
| Mounting Type | DIN Rail/Panel Mount |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 70 °C |
| Number of Outputs | 10 |
| Number of IO Ports | 26 |
| Number of Inputs | 16 |
| Series | XD10 / XD26 Series |
| Input Type | Digital |
| IP Rating | IP40 |
| For Use With | Millenium 3 Custom Controllers, Millenium 3 Standard Controllers |
| Supply Current | 0 to 20 mA |
| Special Features | 70degC Operating Temperature, Backlit Blue LCD Display, Expandable Version, Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit |
| Scan Rate | 10 (Make) Off-Cycle Response, 255 (Functional Block) Response Time, 5 (Release) Off-Cycle Response, 50 (Ladder) Response Time mS |
| Supply Voltage | 24 VAC |
| Voltage Rating | 24 V |
| Temperature Operating Range | -20 to +70 C |
| Output Type | Relay |
| Output Current | 5 A, 8 A |
| Primary Type | Controller |
| Type | PLC |
| Termination | screw |
| Standards | CE, CSA, GL, UL |
| Memory | EEPROM |
| Controller Type | Logic |
| Family Name | Millenium 3 Smart Expandable Family |
| Communication Port Type | Ethernet, Modbus, USB |
Millenium 3 New Features: pH/ORP Measurement Expansion Module:
Monitor and Control Water QualityPools and Spas — Water Filtration Equipment — AgricultureFountains — Food and Beverage Industry — Water ParksCooling Towers — Salt-Water ChlorinatorsM3 Modem Interface:
Interface Standard Telephone and GSM Cell ModemsSend Alarms as Text Messages or E-mails Using Cell ModemText Message Setpoints to the M3 and M3CWireless RF Remote Control Module:
Wireless Remote Control Inputs for the M3 and M3CLights — Gates — Doors — Motors — Pumps — Alarms
