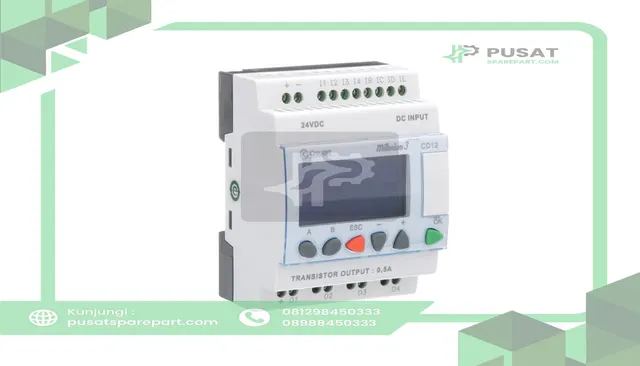

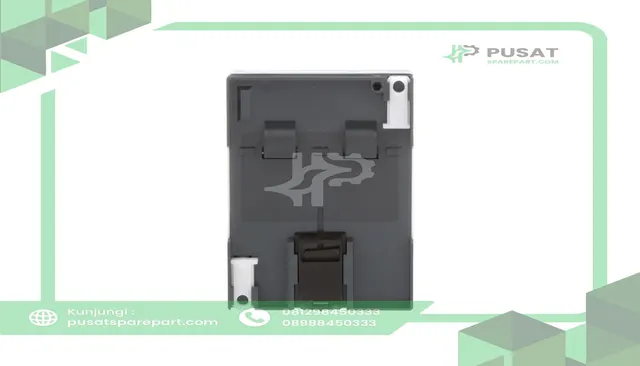

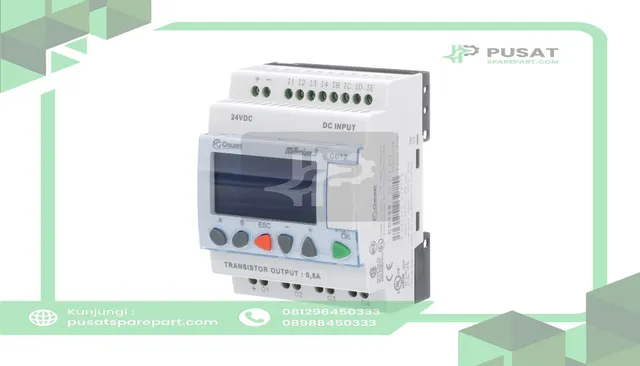

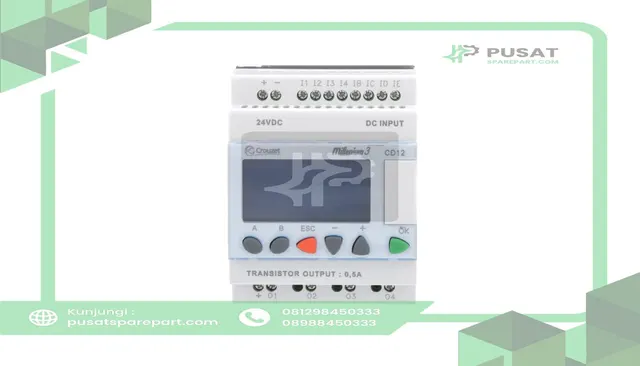

Crouzet 88974042 Controller, Logic, M3 Custom, 8 DigitalIn/4 Relay Out, 24 VDC PNP, CD12ST
(47 ulasan)
| SKU: SKU001689
Rp11.500.000
Lihat deskripsi & spesifikasi lengkap
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi
Deskripsi Produk
| Manufacturer Part Number | 88974042 |
|---|---|
| Manufacturer | CROUZET |
| Mounting Type | DIN Rail/Panel Mount |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 70 °C |
| Number of Outputs | 4 |
| Number of IO Ports | 12 |
| Number of Inputs | 8 |
| Series | Millenium 3 Series |
| Input Type | Analog, Digital |
| For Use With | Millenium 3 Custom Controllers, Millenium 3 Standard Controllers |
| Supply Current | 0 to 20 mA |
| Special Features | 70degC Operating Temperature, Backlit Blue LCD Display, Compact Version, Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit |
| Scan Rate | 10 (Make) Off-Cycle Response, 5 (Release) Off-Cycle Response mS |
| Supply Voltage | 24 VDc |
| Voltage Rating | 24 V |
| Temperature Operating Range | -20 to +70 C |
| Output Type | Solid State |
| Output Current | 0.5 A |
| Primary Type | Controller |
| Type | PLC |
| Termination | screw |
| Standards | CE, CSA, GL, UL |
| Memory | 368 (Data Memory) Bits |
| Controller Type | Logic |
| Family Name | Millenium Range |
| Communication Port Type | Ethernet, Modbus, USB |
The Millenium 3 is the largest generation in the Millenium series. Improvements over the Millenium 2 include:
• The Compact Controller Has Around Twice the Memory Size
• The Expandable Controller Has Around Four Times the Memory Size
• 10 Bit Analogue Input Resolution (0-10 V Signal) on DC Input Types (8 Bit)
• 18 Character (Formerly 12), 4 Line Display with Scrolling Text and Bargraph Functionality
• Choice of Ladder or Function Block Programming
