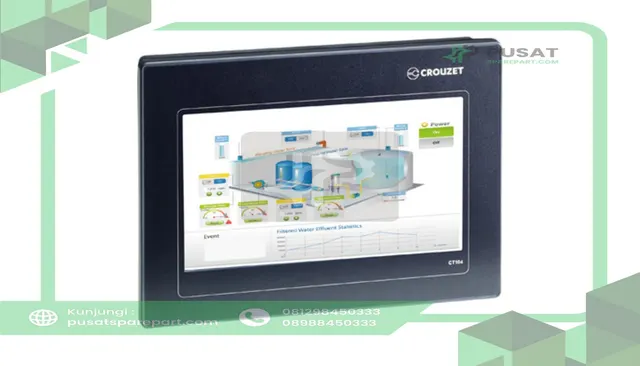

Crouzet 88970523 HMI 4.3" Touchscreen 16.7M Color 480x272 Pixels 24VDC IP65 XE10R Series
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Deskripsi Produk
| Fitur Khusus Lampu Latar | Ya |
|---|---|
| Merk | CROUZET |
| Kecerahan | 400 cd/m2 |
| Kecepatan CPU | 600 MHz |
| Dimensi | 0.00 in W X 5.04 in L X 1.26 in D |
| Warna Layar | 16.7M Color |
| Resolusi Layar | 480 x 272 Pixels |
| Ukuran Layar | 4.3 in |
| Tipe HMI | Touch Screen HMI |
| IP Rating | IP65 |
| Part Number Pabrikan | 88970523 |
| Memori | 1258 MByte storage, 128 MByte Ram |
| Tipe Pemasangan | Chassis Mount |
| Jumlah Port | 3 |
| Tipe Prosesor | 32 Bit RISC |
| Seri | XE10R Series |
| Tegangan Suplai | 24 VDc |
| Teknologi | TFT LCD Display |
| Rentang Suhu Operasi | 0 to 50 C °C |
| Satuan | EA |
Crouzet Millenium 3 Family | XE10R Series — Logic Controller Extensions for Smart and Essential Ranges:4.3" Essential Series HMI Crouzet Touch Display and M3 hookup cable for Millenium3, EVO & em4,Features:
• Bases: CD12, CD20, CB12, CB20, XD10, XD26, XB10, XB26
• Extensions: XE10, XR06, XR10, XR14
• Can be used to reach up to 50 inputs/outputs in conjunction with the XR14 termination extension
• Relay outputs one of which is a changeover relay
• TFT-LCD resistive touch screen
• Fan less cooling system
• 32 bit RISC Cortex-A8, 600 MHz
• Built-in RTC
• Direct communication with M3 programming port
• Modbus RS485 protocol (drivers for M3 and em4)
• Modbus TCP/IP protocol (drivers for M3 and em4)
• Integrated VNC server
• Additional functions provided by Crouzet Touch programming software (e-mails,recipe database, enhanced security…)
• CE mark, cULus listed
