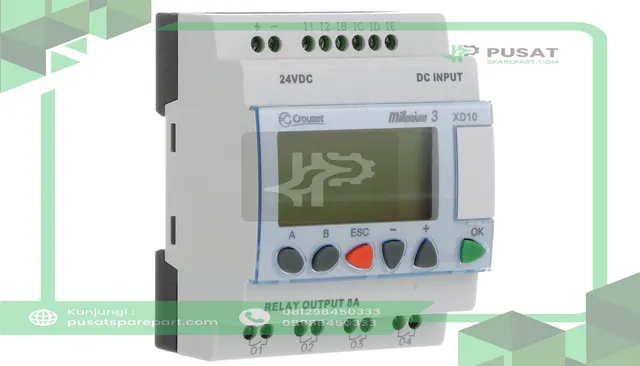

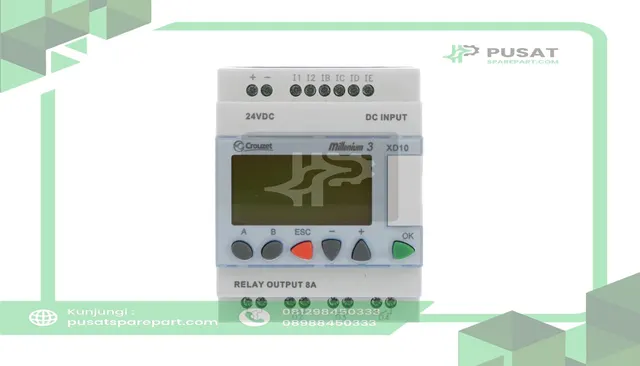

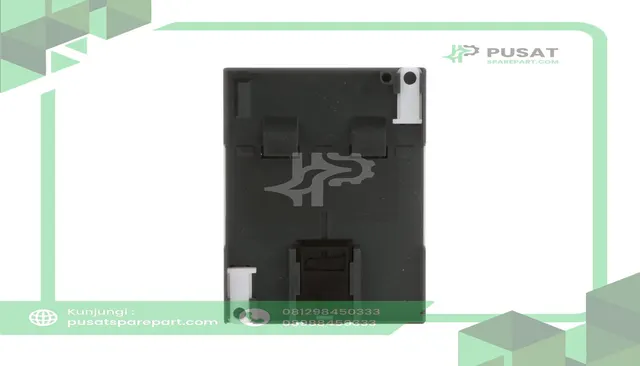

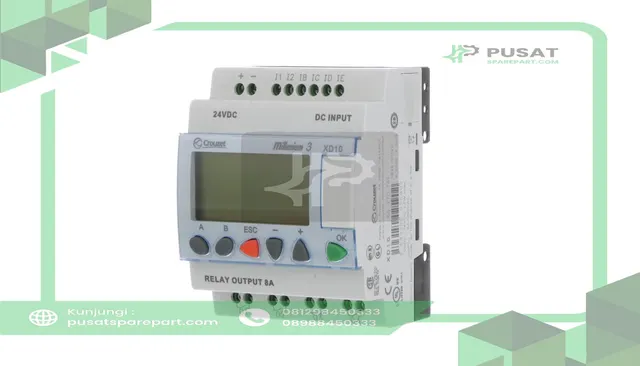

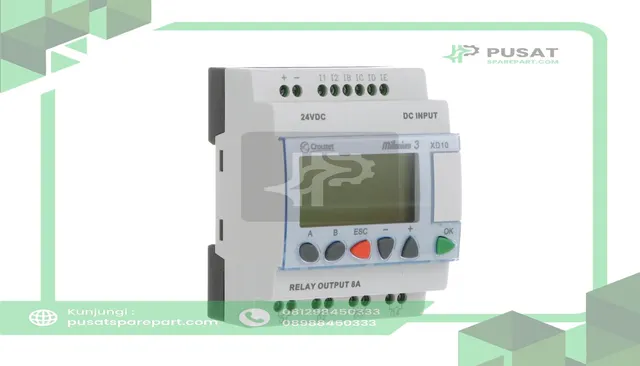

Crouzet 88970141 Controller,PLC,Sup-V 24DC,6 Analog/Digital In,4 Relay Out,DIN Rail/Panel Mnt
- 100% Produk Original / OEM
- Bergaransi resmi toko
- Retur 7 hari untuk barang cacat / salah kirim
- Pengemasan aman & rapi
Deskripsi Produk
| Manufacturer Part Number | 88970141 |
|---|---|
| Manufacturer | CROUZET |
| Mounting Type | DIN Rail/Panel Mount |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 55 °C |
| Number of Outputs | 4 |
| Number of IO Ports | 10 |
| Number of Inputs | 6 |
| Series | CB12 / CB20 Series |
| Input Type | Analog, Digital |
| IP Rating | IP40 |
| For Use With | Millenium 3 Standard Controllers |
| Supply Current | 0 to 20 mA |
| Special Features | 70degC Operating Temperature, Backlit Green LCD Display, Expandable Version, Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit |
| Scan Rate | 10 (Make) Off-Cycle Response, 5 (Release) Off-Cycle Response mS |
| Supply Voltage | 24 VDc |
| Voltage Rating | 24 V |
| Temperature Operating Range | -20 to +55 C |
| Output Type | Relay |
| Output Current | 8 A |
| Primary Type | Controller |
| Type | PLC |
| Termination | screw |
| Standards | CE, CSA, GL, UL |
| Memory | EEPROM |
| Controller Type | I/O |
| Family Name | Millenium 3 Smart Compact Family |
| Communication Port Type | Ethernet, Modbus, USB |
Crouzet Millenium 3 Smart Compact Family | CB12 / CB20 Series — Easiest Logic Controller Without Display:
The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os. Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Features: Efficient and economical version, without display or keys setting Allow the use of the entire library of specific functions blocs of the software workshop Extended temperature range (-30 °C +70 °C) Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)Millenium 3 Family Features: Manage all your HMI project from Crouzet Touch Utility Manager A wide range of tools to help you develop the perfect project Dedicated communication drivers for em4 and Millenium 3 and Millenium EVO allowing simple addressing and label management Import existing MTP HMI programs into the new Crouzet Touch SoftSmart Compact Range Without Display Features: Compact versions: 12 I/Os and 20 I/Os With or without display, in 24 V, 12 V, 24 V and 100to 240 V versions Efficient and economical version, without display or keys setting Allow the use of the entire library of specific functions blocs of the software workshop Extended temperature range (-30 °Cto+70 °C) Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters) Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
