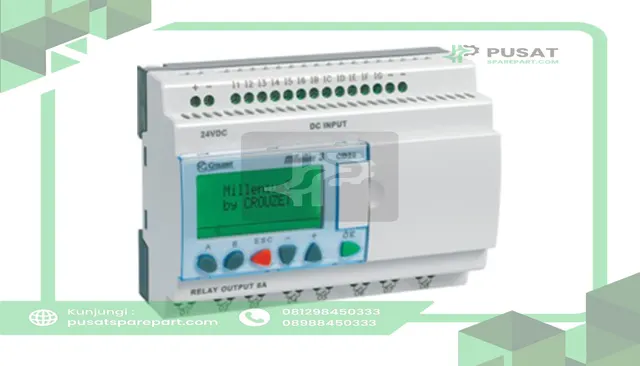

Crouzet 88970052 Smart Relay, Millenium 3, CD20 Controller, 24 VDC, 12 InputS, 8 static

Name: Crouzet 88970052 Smart Relay, Millenium 3, CD20 Controller, 24 VDC, 12 InputS, 8 static
Brand: Crouzet
SKU: SKU038004
Price: 13400000 IDR
Availability: BackOrder

(20 ulasan) | SKU: SKU038004

Rp13.400.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Application	Communication
Brand	CROUZET
Controller Type	CD12
Dimensions	4.24 in L X 0.08 in D
Display Type	LCD
Family Name	Crouzet Millenium 3 Smart Compact Family
IP Rating	IP40
Manufacturer Part Number	88970052
Maximum Operating Temperature	55 °C
Memory	EEPROM
Minimum Operating Temperature	-20 °C
Mounting Type	DIN Rail/Panel Mount
Number of Inputs	12
Number of Outputs	8
Output Current	0.5 A
Output Type	4 (PWM), 4 (Solid State Relay)
Primary Type	Controller
Scan Rate	10 (Make) Off-Cycle Response, 5 (Release) Off-Cycle Response
Series	CD12 / CD20 Series
Special Features	Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit
Standards	CE, CSA, GL, UL
Supply Current	0 to 20 mA
Supply Voltage	24 VDc
Temperature Operating Range	-20 to +55 C
Terminal Type	Screw
Termination	screw
Type	PLC

▶Budget Solution with Display ▶Memory: 120 Lines in LADDER Language and Up-to-350 "Typical" Blocks in FBD Language ▶LCD with 4 Lines of 18 Characters and Configurable Backlighting ▶Selective Parameter Setting: You Can Choose the Parameters That Can Be Adjusted on the Front Panel ▶Analog Inputs: 0-10 V or 0-20 mA/Pt 100 with Converters Type: CD20: ▶Input: 12 Digital of Which 6 Are Analog ▶Output: 8 Solid State of Which 4 Is PWM ▶Supply Voltage: 24 VDC
