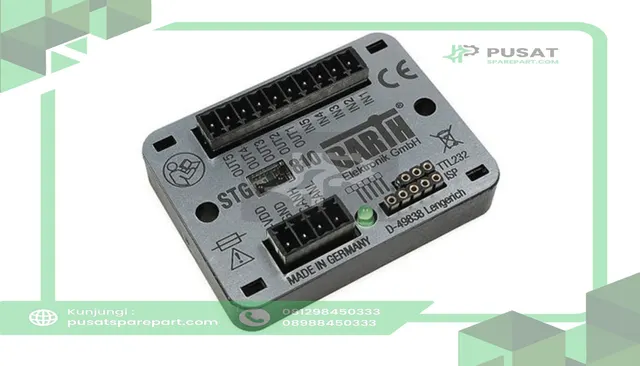

BARTH 0850-0810 Mini-PLC STG-810, 7-32 VDC, 5 x Input, 9 x Output

STG-810 ARM Mini-PLCBarth professional range of STG-810 CAN Mini-PLC with a powerful 32-bit ARM Cortex core. The STG-810 Mini-PLC features a rugged CAN/CANopen interface with intuitive graphical programming capability. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption in a small form factor. To program the STG-810 CAN Mini-PLC in the open source way the KEIL µVision software suite is required.(http://www2.keil.com/stmicroelectronics-stm32/mdk)The 32-bit ARM Cortex core provides two high-speed events, pulse and frequency counter inputs and one 16-bit PWM output combined with a precise internal voltage reference for the 12-bit analogue inputs. The automotive-qualified CAN2.0A/B/CANopen interface is able to operate in noisy environments and allows connection of various network components to the Mini-PLC.Features and Benefits
• IrDA/SIR Interface
• Tiny and super-flat CAN Logic Controller
• High-Performance 32-Bit ARM Cortex
• 3 analogue Inputs 0 V dc to 30 V dc, 12-bit ADC
• Event Counter Input 25 kHz
• Pulse and Frequency Counter Input 40µs
• 4 Solid-State Power Outputs up to 1.5 A
• 1 Power PWM Output 16-Bit 1 Hz to 25 kHz
• CAN 2.0A/B and SAE J1939 Interface
• CANopen Interface (Open Source)
• Comprehensive Fail-Safe Functions
• TTL-232 3.3V Interface
• Open Source C Programming
• Wide Operating Voltage Range 7 V dc to 32 V dc
• Wide Operating Temp. Range -40 to +70°C
• Vibration resistant and rugged SealingBarth Mini-PLC
