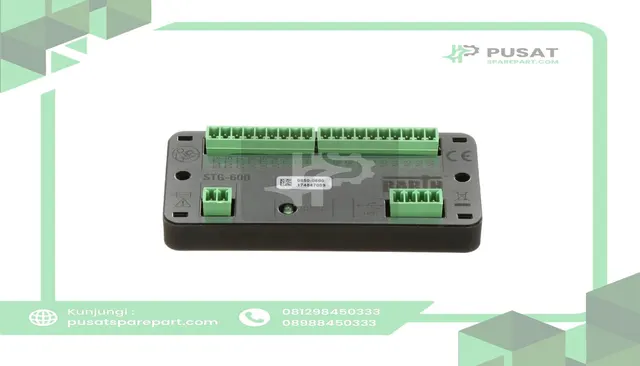

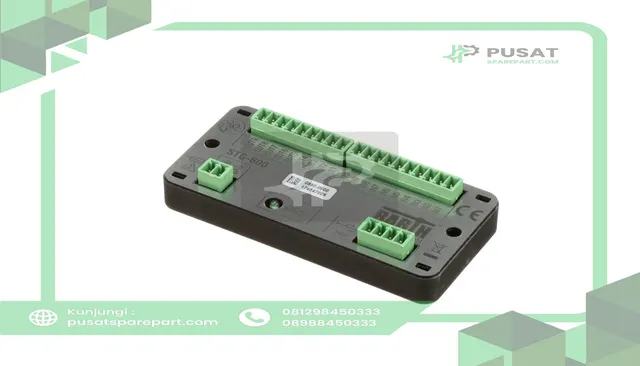

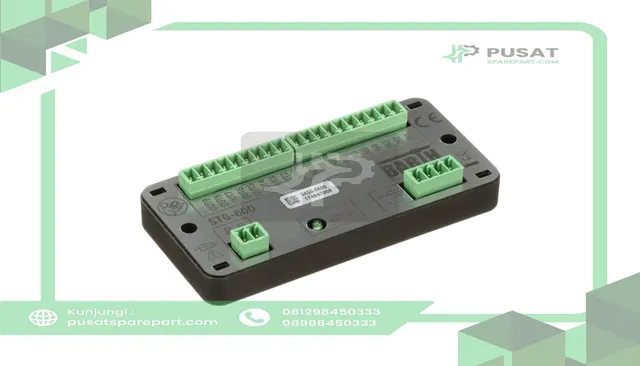

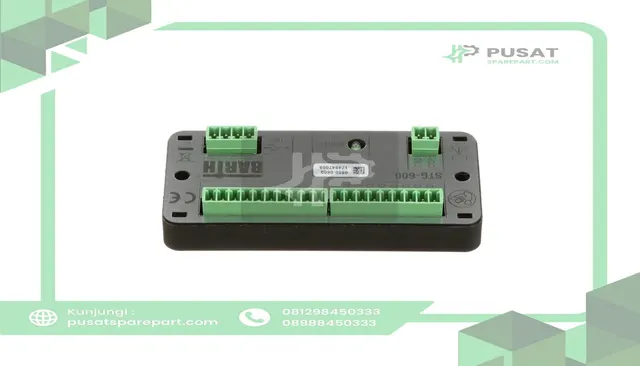

BARTH 0850-0600 Mini-PLC STG-600, 7-32 VDC, 10 x Input, 9 x Output

STG-600 - Mini-PLCThe STG-600 is a highly integrated programmable logic controller providing outstanding graphical programming capability at lowest current consumption and small form factor. The STG-600 does not need any peripheral components to operate. Both inputs and outputs feature highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environment. With low current consumption and wide operation voltage range, the STG-600 is suitable for 12 V and 24 V battery-powered systems.
Features & Benefits
• Small and universal PLC
• 8 analogue Inputs 0 V dc to 30 V dc
• 2 digital Inputs up to 10 kHz
• 8 Power Outputs up to 1.5 A
• 1 Power PWM Output 2 A/0-10 kHz
• Reliable Solid-State Outputs
• Programmable Status LED
• USB Connection to PC
• Intuitive graphical Programming Capability
• Wide Operating Voltage Range 7 V dc to 32 V dc
• Ultra-flat Housing, Height 10 mm
• Vibration resistant and rugged Sealing
• Low Current Consumption Product Application InformationWith its cutting edge features the STG-600 opens up new application fields with space restrictions and high integration level requirements. The outstanding features also open up applications in automotive, industrial, building, environmental, light and show, and maritime technologies.
Programming and Software
• The miCon-L software suite provides the fastest access to unique graphical programming capability without having to learn a difficult programming language. The Mini-PLC can be easily programmed using simple and vivid graphical function blocks which meet graphical standards of the latest programming languages.
• The software features programming, simulation and test in one unique software design tool and can be downloaded for free from the following link: http://micon-l.de/en/downloads.htmlBarth Mini-PLC
