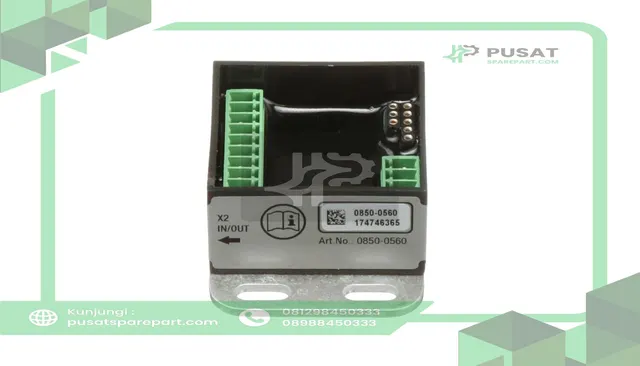

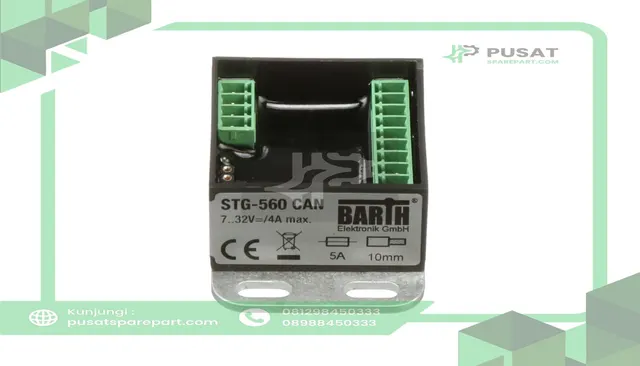

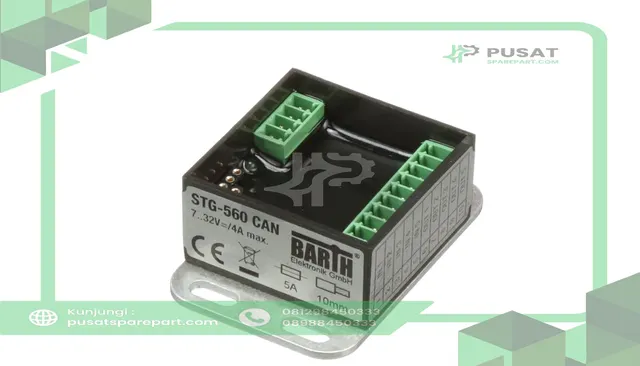

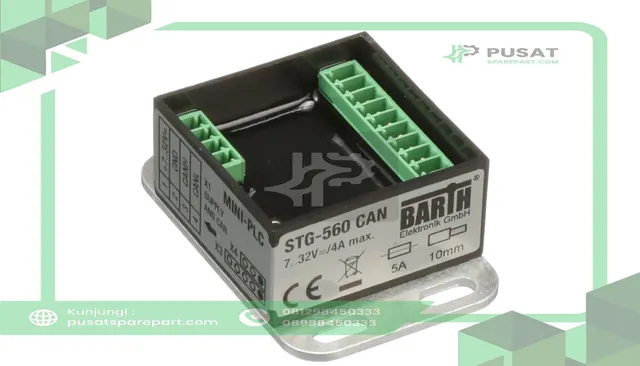

BARTH 0850-0560 Mini-PLC STG-560, CAN/RS485 7 -32 VDC, 5 x Input, 5 x Output

STG-560 CAN - Mini-PLCA professional range of STG-560 CAN Mini-PLC from Barth. The STG-560 Mini-PLC has extended the established Barth CAN Mini-PLC series with an excellent open source hardware concept. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption and the well-known small form factor. Various network components can be connected to the Mini-PLC through the CAN/RS485 interface, such as; displays & CAN sensors. Both inputs and outputs feature highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environments. The STG-560 does not need any peripheral components to operate and all models are highly reliable and excellent quality.
Features:
• Small and universal CAN Logic Controller
• Programmable with all PIC18® Compiler
• 3 analog Inputs 0..30 VDC, 12 bit ADC
• 2 digital Inputs up to 10 kHz
• 4 Power Outputs up to 1.5 A
• 1 Power PWM Output 2 A/1 to 32 kHz
• 1 CAN/RS485 Interface
• Reliable Solid-State Outputs
• Fail Safe Oscillator 16 MHz
• Programmable Status LED
• TTL-232/USB Connection to PC
• Wide Operating Voltage Range; 7 to 32 VDC
• Wide Operating Temperature Range; -40 to +60°C
• Vibration resistant and rugged Sealing Barth Mini-PLC
