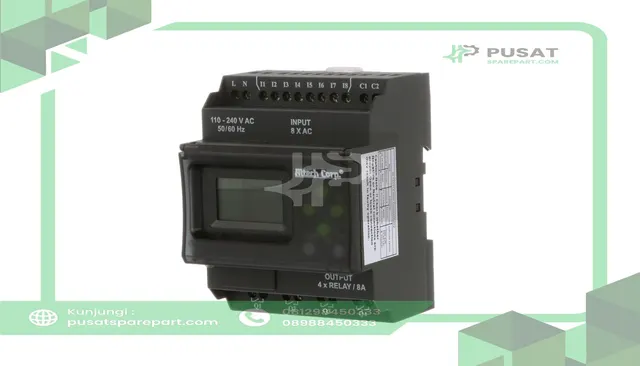

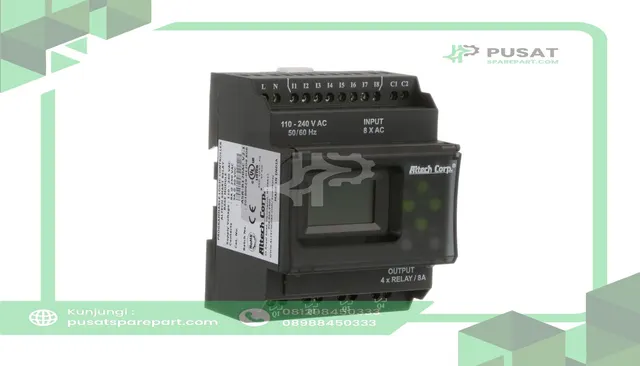

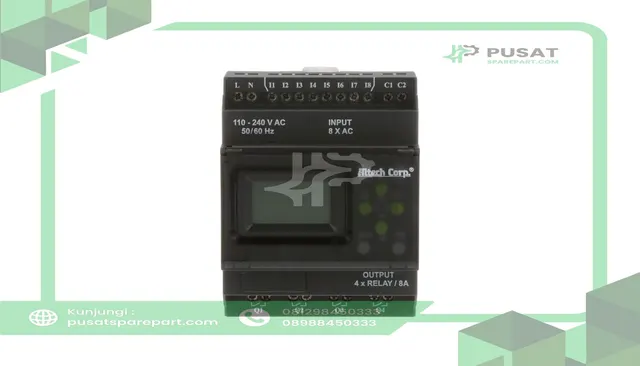

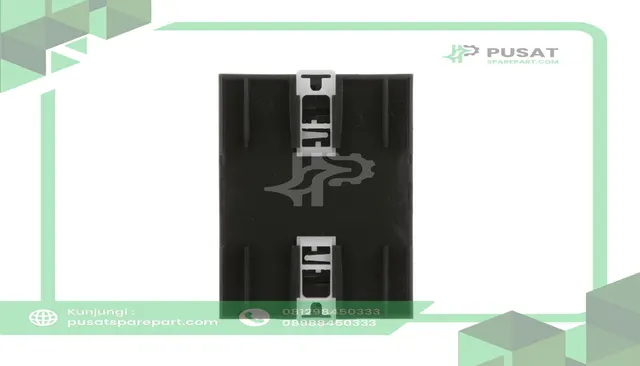

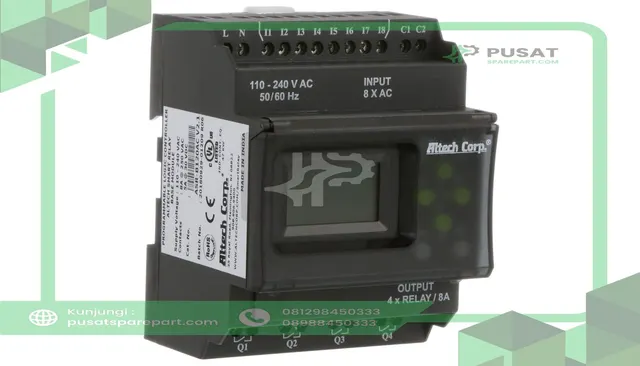

Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs

Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs - gambar 1

Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs - gambar 2

Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs - gambar 3

Altech Corp

Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs

Name: Altech Corp ASR-B120AC Smart Relay, Base Module, 110-240VAC, 5W, 8 Inputs
Brand: Altech Corp
SKU: SKU001809
Price: 6960000 IDR
Availability: BackOrder

(47 ulasan) | SKU: SKU001809

Rp6.960.000

Lihat deskripsi & spesifikasi lengkap

100% Produk Original / OEM
Bergaransi resmi toko
Retur 7 hari untuk barang cacat / salah kirim
Pengemasan aman & rapi

Pre Order — barang akan disiapkan setelah pesanan dikonfirmasi

Deskripsi Produk

Manufacturer Part Number	ASR-B120AC
Manufacturer	Altech Corp
Mounting Type	DIN Rail Mount
Minimum Operating Temperature	-10 °C
Maximum Operating Temperature	55 °C
Number of Outputs	4
Number of Inputs	8
Series	ASR Series
Input Current	36 mA
Input Type	Digital
For Use With	Micro Controllers
Supply Current	36 mA
Special Features	Backlit LCD Screen, DST Features, Designed for Automation of Commercial & Industries, Modbus Communication, PC Software for Programming
Supply Voltage	100-240 VDC
Temperature Operating Range	-10 to +55 C
Output Type	Relay
Output Current	1.5 A
Primary Type	Controller
Application	Modbus Communication
Dimensions	0.00 in W X 3.94 in L X 0.08 in D
Type	PLC
Termination	screw
Standards	UL Listed, IEC, IP20 Rating Terminal, IP40 Rating Enclosure
Communication	RS485
Contact Form	4 NO

Standards and Certifications:
• UL 508 (UL File No. E352868)
• IEC 61000-3-2
• IEC 61000-4-2-1~11Features:
• Supports Up to 48 I/Os (32 Digital Inputs and 16 Digital Outputs)
• DST Feature Available
• Backlit LCD Screen for Display and Modification of Pre-Selected Parameters of Functional Blocks, Viewing I/O Status and Programming on the Device
• PC Software for Programming, Online and Offline Simulation, Documentation and Printing
• Designed for Use in Automation for Commercial and Industrial Sectors
• Modbus Communication
• 5 W Power ConsumptionProgramming Features:
• 250 Lines of Ladder Programming
• 16 Soft Messages, Time Switches, Compare Counters, Timers, Counters and 12 Analog Functions
