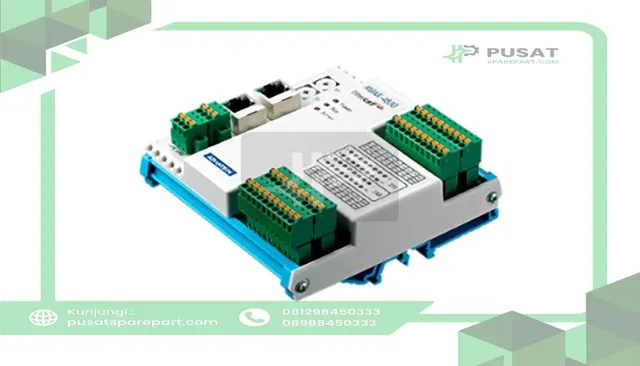

Advantech AMAX-4830-B EtherCat Remote IO, 16 Ch DI & DO, Iso 2500 VDC, advq, DIN Rail, AMAX Series

The AMAX-4830 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 V DC isolation.16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module- Suitable for EtherCAT networks- 16-ch digital input and 16-ch digital output with 2,500 VDC isolation- Wide input voltage range (10 ~ 30 VDC)- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)- Quick removable European type connector- LED indicators for I/O status- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode- Two Rotary switches for up to 256 slave IDs
